Siemens Residual current circuit breaker F 80/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 5SV36173
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV36173 Residual current circuit breaker F 80/2, tightening torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV36173
- EAN / GTIN
- 4001869484440
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 2
- Rated fault current
- 300 A
- Leakage current type
- F
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 3 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869484440
- SAP 1000710955
- Code 8328925
Product Documentation
More from Siemens
Siemens
Siemens Contactor Relay, 6NO+2NC, AC 230V, 50/60Hz, Size S00, Spring Terminal Connection
3RH2262-2AP00
Siemens
Siemens SITRANS pressure transmitter 7MF1567-3CD00-1AA1
Siemens
Siemens Alpha 630 Din, Floor Cabinet Including Plinth Colour Ral 7035, IP55, SK1, H=1900 B=1300 D=250
8GK1323-8KN53
Siemens
Siemens MCCB_3VA21_3P_55KA_ETU550,LSI,IN=160A,IR=64A-160A,ISD=0,6-10XIN,II=1,5-10XIN,B
3VA2116-5JP32-0AA0
Siemens
Siemens Link Module, Electrical and Mechanical, for K3RV2011 and 3RW3
3RA2911-2GA00
Siemens
Siemens SIRIUS RONIS key-operated switch, 22 mm, round, plastic, lock number SB30, with 2 keys, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30H/12H, key removal O, possible special locks: SB31, 421, 455
3SU1000-4BC01-0AA0
Siemens

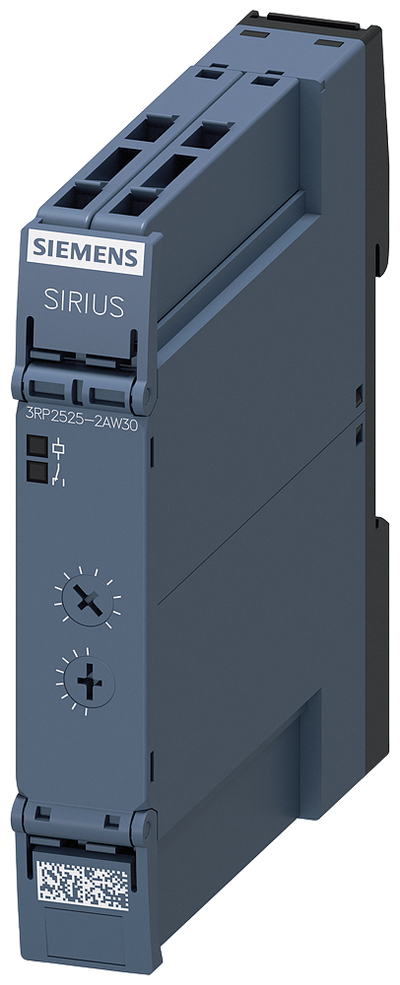

Siemens SIRIUS 3RP25 Time relay -Electronic,delay 3RP2525-2AW30
Siemens

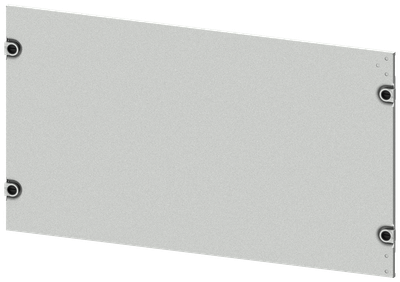

Siemens Cover H: 400 mm W: 800 mm
