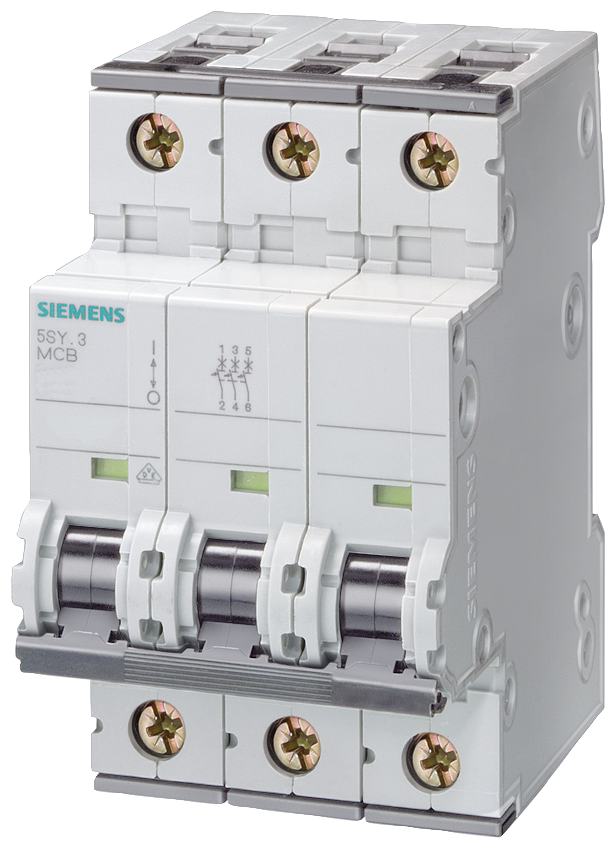

Siemens SENTRON 5SY7320-7 Miniature Circuit Breaker 3-Pole C20A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7320-7. 3-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 20 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7320-7
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 3-Pole
- Rated current (In)
- 20 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869191225
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 4 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869191225
- SAP 1000079889
- Code 8816600
Product Documentation
More from Siemens
Siemens
Siemens Direct Online Starter (DOL), 3-12 A, 45 mm Wide, Spring Clamp Connection (3RA6120-2DB32)
Siemens

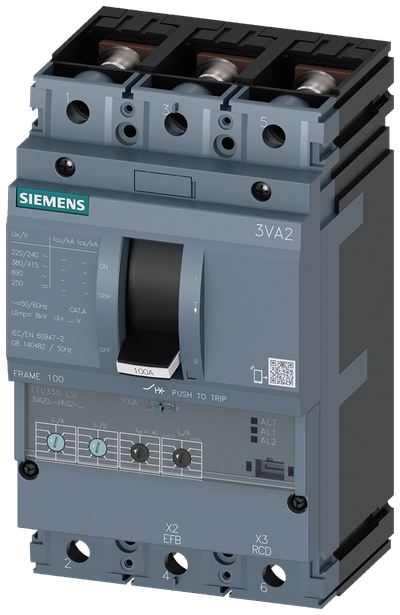

Siemens MCCB_3VA20_3P_55KA_ETU350,LSI,IN=40A,IR=16A-40A,ISD=1,5-10XIR,II=12XIN,B
3VA2040-5HN32-0AA0
Siemens

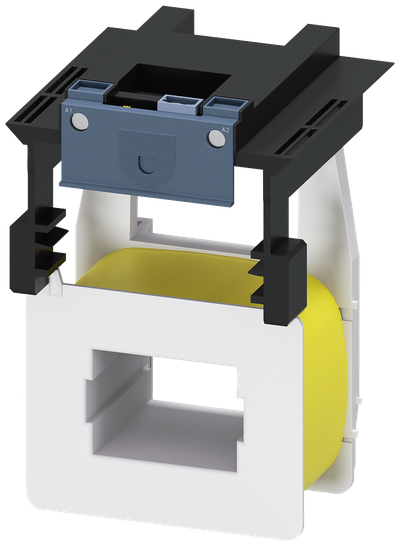

Siemens Coil for size 3RT1975-5NP31
Siemens

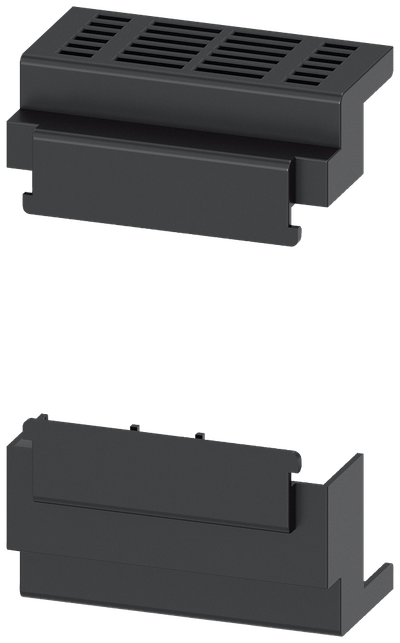

Siemens NH000 reach-round protection for railsystem rittal 1X top and 1X bottom
3NP1923-1CA20
Siemens

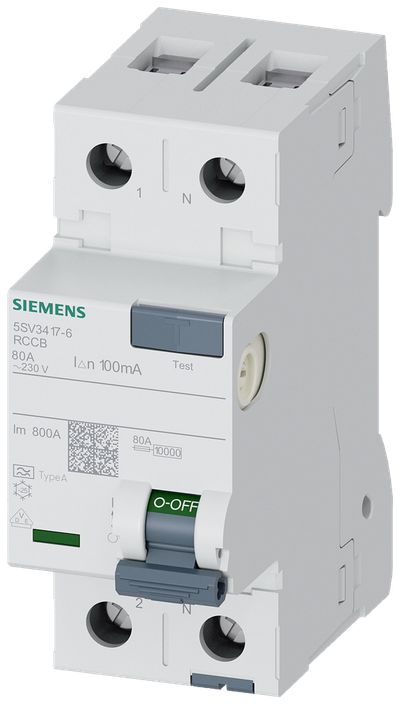

Siemens Residual current circuit breaker, 2-Pole, type A, In: 80 A, 100 mA, Un AC: 230 V
5SV3417-6
Siemens

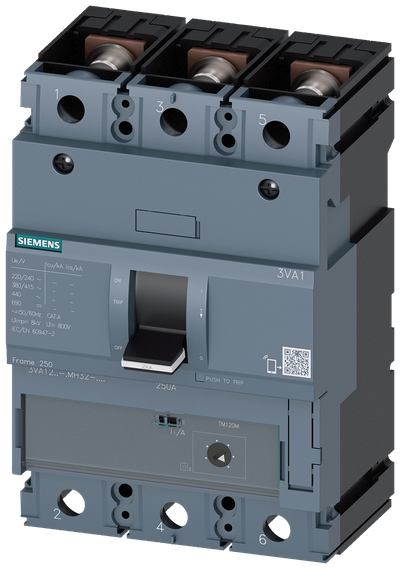

Siemens Circuit breaker 3VA1, motor protection with adjustable Ii=7 to 14 x IN, 250A, 3P, TM120M, 70kA, BOLT
3VA1220-6MH32-0AA0
Siemens

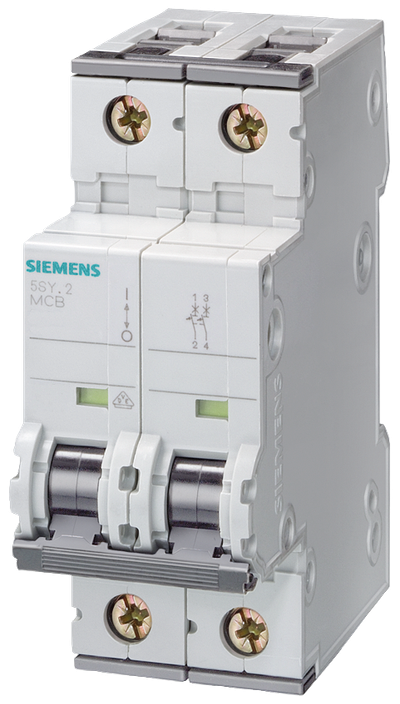

Siemens SENTRON 5SY8201-7 Miniature Circuit Breaker 2-Pole C1A 25KA
Siemens

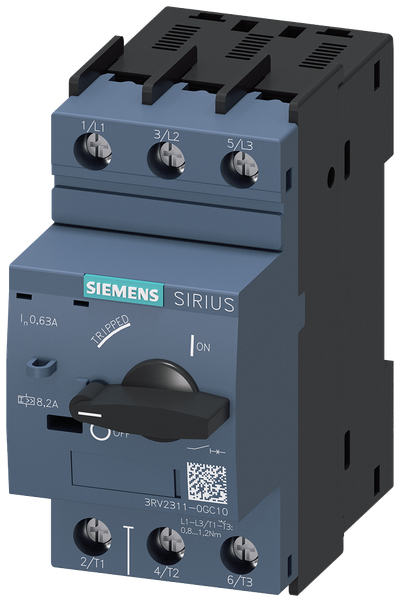

Siemens Circuit breaker 0 3RV2311-0GC10
