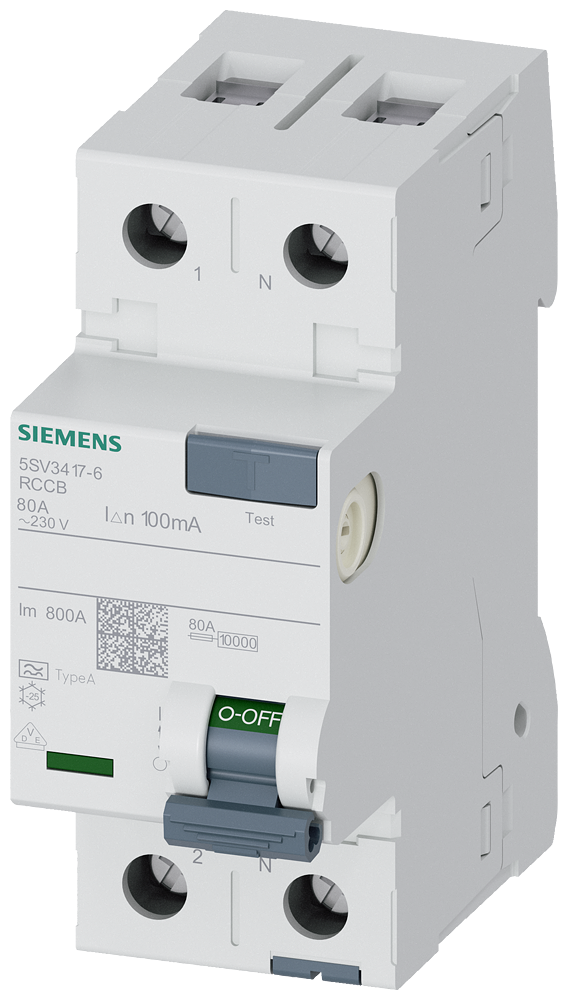

Siemens Residual current circuit breaker, 2-Pole, type A, In: 80 A, 100 mA, Un AC: 230 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3417-6. Residual current circuit breaker type A, instantaneous, 2/80 100MA, tightening torque 2,5 Nm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3417-6
- EAN / GTIN
- 4001869429700
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 2
- Rated fault current
- 100 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869429700
- SAP 1000502954
- Code 8880826
Product Documentation
More from Siemens
Siemens
Siemens Circuit breaker 3VA1, motor protection with adjustable Ii=7 to 14 x IN, 250A, 3P, TM120M, 70kA, BOLT
3VA1220-6MH32-0AA0
Siemens
Siemens SENTRON 5SY8201-7 Miniature Circuit Breaker 2-Pole C1A 25KA
Siemens
Siemens Circuit breaker 0 3RV2311-0GC10
Siemens
Siemens Main Circuit Terminals for 3RA6 Compact Starter, 3-Phase, Spring Clamp Connection
3RA6920-2A
Siemens
Siemens MCCB_3VA20_3P_55KA_ETU850_,LSI,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,terminal Cu
3VA2040-5KP36-0AA0
Siemens
Siemens MCCB_3VA20_3P_55KA_ETU850,LSI,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2040-5KP32-0AA0
Siemens
Siemens Undervoltages Release for mount 5ST3042
Siemens
Siemens Contact Block Bottom 2NO
3RH2911-1MA20
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SV3417-6?
- 5SV3417-6 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SV3417-6.
- What is the HS code for 5SV3417-6?
- The customs tariff (HS) code for 5SV3417-6 is 8536.90.
- Who manufactures 5SV3417-6?
- 5SV3417-6 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 5SV3417-6?
- Yes — the 5SV3417-6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SV3417-6?
- The minimum order quantity is 1.
- Is 5SV3417-6 available?
- Yes — 5SV3417-6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
