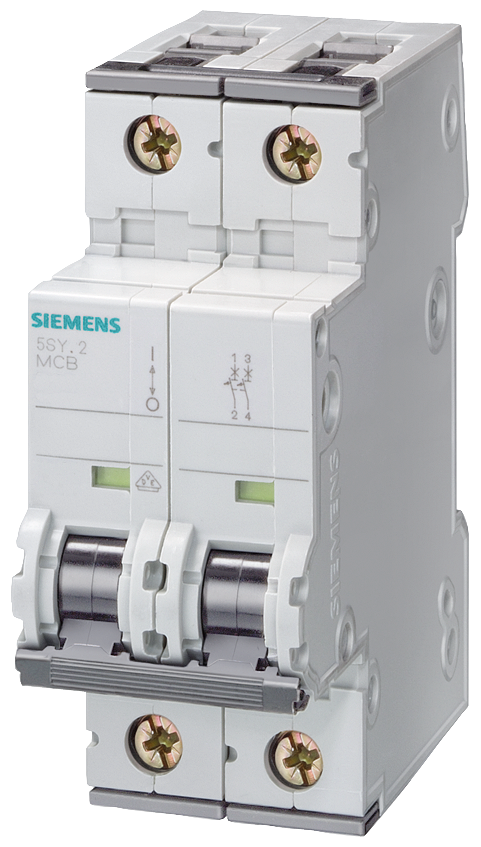

Siemens SENTRON 5SY7220-7 Miniature Circuit Breaker 2-Pole C20A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7220-7. 2-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 20 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7220-7
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 2-Pole
- Rated current (In)
- 20 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869190938
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 6 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869190938
- SAP 1000082762
- Code 8574778
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD2230-2ME20-0, 32 A, 3-Pole, Front Operated Centre, with Rotary Handle
Siemens
Siemens Cable connection rear 3VA22 (250 A) 3-Pole, H: 200 mm
8PQ6000-8BA30
Siemens
Siemens SIRIUS ACT Illuminated Pushbutton 22mm Blue 1NO 24V AC/DC 3SU1152-0AB50-1BA0
Siemens

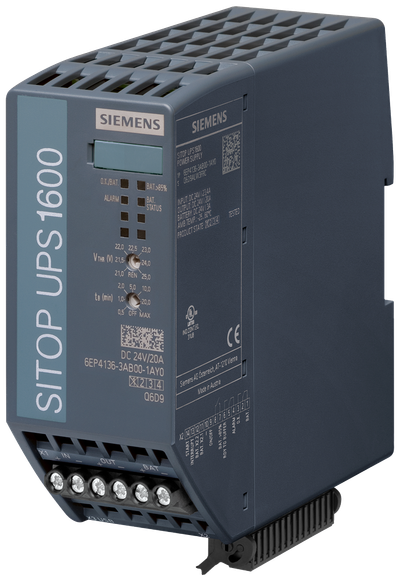

Siemens SITOP DC power supply 6EP4136-3AB00-1AY0
Siemens

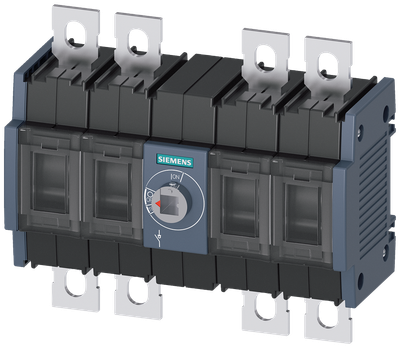

Siemens SENTRON 3KD Switch-Disconnector 3KD3040-0NE20-0, 100 A, 4-Pole, Front Operated Centre, without Rotary Handle
Siemens

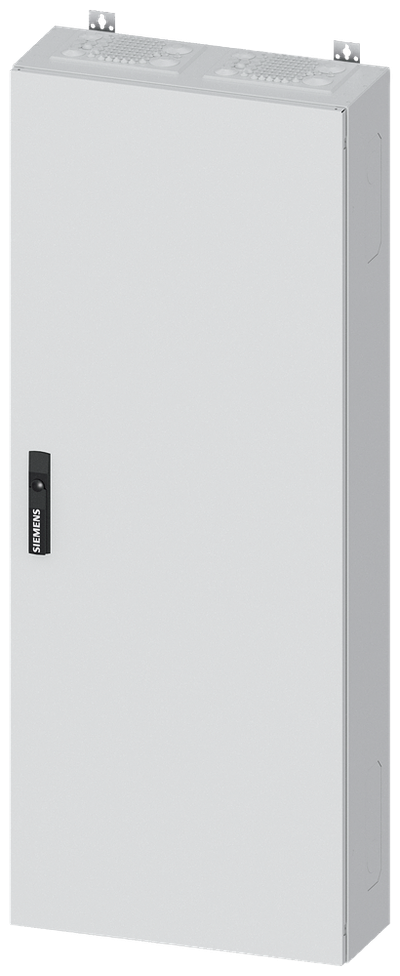

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 1, H: 1400 mm, W: 550 mm, D: 210 mm, RAL 9016
8GK1122-7KA22
Siemens

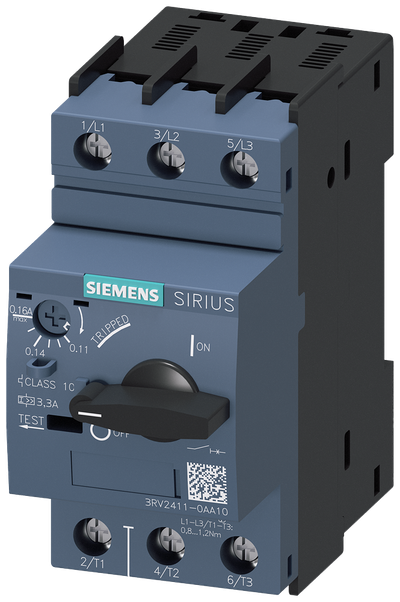

Siemens Motor protection circuit breaker 0 3RV2411-0AA10
Siemens

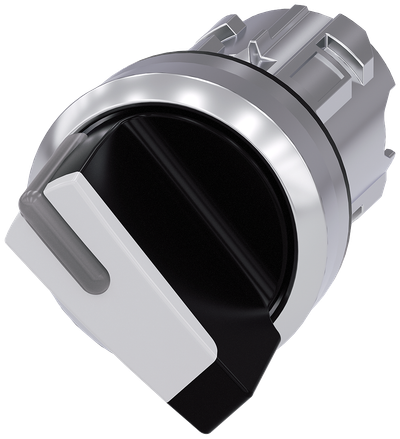

Siemens SIRIUS ACT Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
