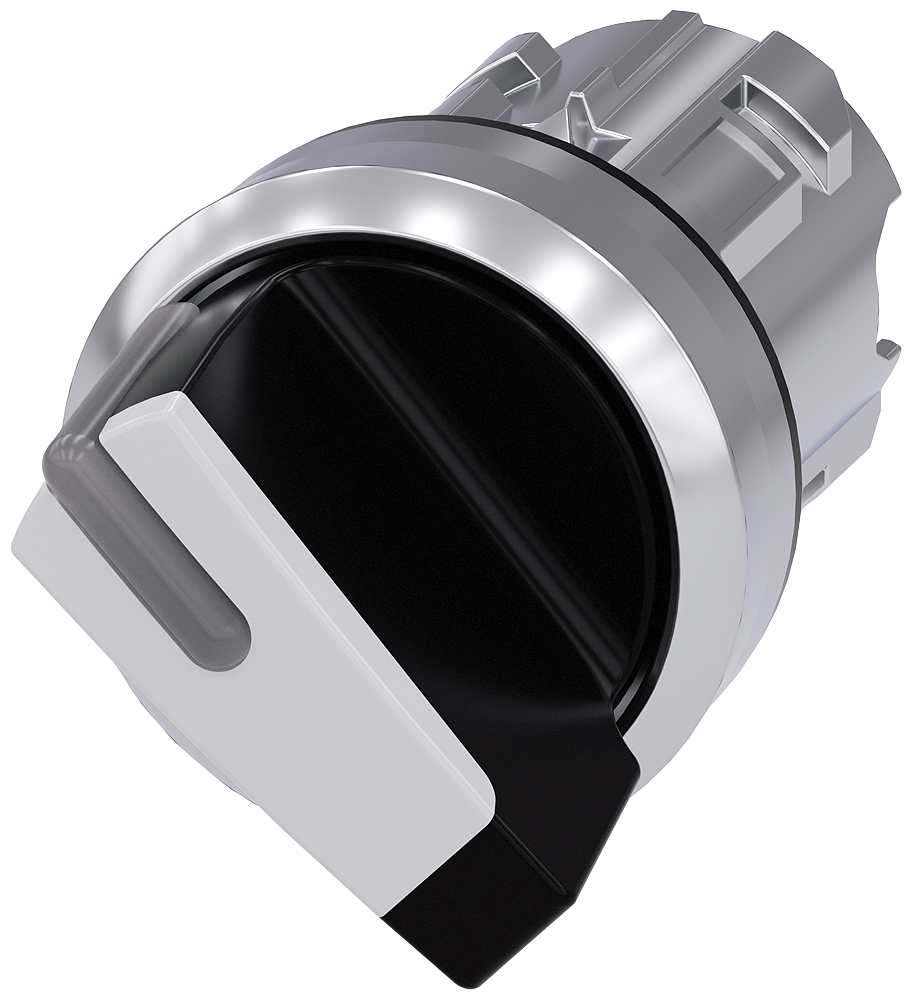

Siemens SIRIUS ACT Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1052-2BF60-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 22mm blank metal design Selector Switch Head, 2 posisjons O-In.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1052-2BF60-0AA0
- EAN / GTIN
- 4011209969650
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Selector switches
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Selector, short
- Principle of operation of the actuating element
- latching, 90° (10:30 h/13:30 h)
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- Yes
- Color of the actuating element
- white
- Material of the actuating element
- plastic
- Shape of the actuating element
- Handle
- Outer diameter of the actuating element
- 32.3 mm
- Number of switching positions
- 2
- Actuating angle — clockwise
- 90°
- Product component front ring
- Yes
- Design of the front ring
- standard
- Material of the front ring
- Metal, high gloss
- Color of the front ring
- silver
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Operating frequency maximum
- 1 800 1/h
- Mechanical service life (operating cycles) typical
- 1 000 000
- Reference code according to IEC 81346-2
- S
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 100 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 32.3 mm
- Installation/ mounting/ dimensions — width
- 32.3 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 28.8 mm
- Installation width
- 32.3 mm
- Installation depth
- 25.4 mm
- Hole diameter
- 22.3 mm
- Number of switch positions
- 2
- Degree of protection (IP), front side
- IP68
- Width opening
- 32.3 mm
- Height opening
- 28.8 mm
- Material front ring
- Metal
- Construction type lens
- Rectangular
- Type of control element
- Wing knob
- Colour indicator light cap
- White
- Colour control element
- White
- Degree of protection (NEMA)
- 4X
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209969650
- SAP 1000688564
- Code 8397214
Product Documentation
More from Siemens
Siemens
Siemens Circuit breaker 3VA1, starter protection with adjustable Ii=7 to 16 X IN, 125A, 3P, TM120M, 55KA, BOLT
3VA1112-5MH32-0AA0
Siemens
Siemens 3NH3530
Siemens
Siemens Alpha 400/630 Din, mounting plate Steel for mounting on Vertical montasjerailr(Traverser) 8GK9531-8KK10
Siemens
Siemens 5ST3723
Siemens
Siemens SENTRON 5SY7132-7 Miniature Circuit Breaker 1-Pole C32A 15KA
Siemens
Siemens SENTRON 3VA9263-0JF60 — Cu/Al box terminal, 3-Pole, 6×1.5–35 mm², 3VA20 / 3VA21 / 3VA22
Siemens
Siemens SENTRON 5SY8350-7 Miniature Circuit Breaker 3-Pole C50A 25KA
Siemens

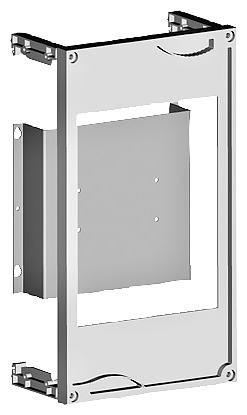

Siemens Alpha 400/630 Din, Set for Sikringskilleswitch 3NP4270, 1XNH1 mounting plate with Insulated Cover
