Siemens SENTRON 5SY7313-6 Miniature Circuit Breaker 3-Pole B13A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7313-6. 3-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 13 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7313-6
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 3-Pole
- Rated current (In)
- 13 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869191027
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 4 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869191027
- SAP 1000052605
- Code 8831622
Product Documentation
More from Siemens
Siemens

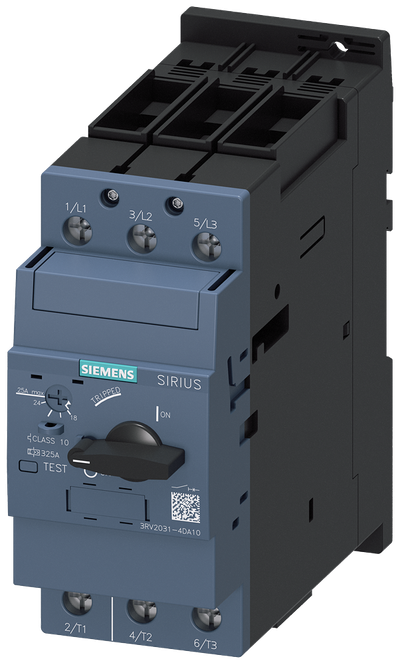

Siemens SIRIUS Motor protection circuit breaker,18 3RV2031-4DA10
Siemens

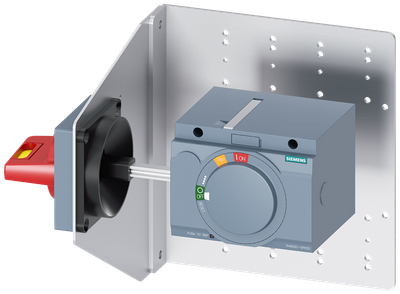

Siemens SENTRON 3VA9267-0PK55 — Side-wall rotary operating mechanism with coupling plate, 3VA20 / 3VA21 / 3VA22
Siemens

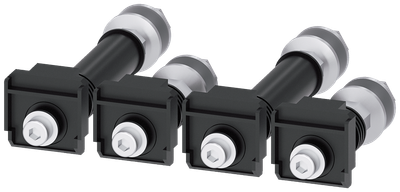

Siemens SENTRON 3VA9404-0QF00 — Rear connection terminal (box), 3VA23 / 3VA24
Siemens

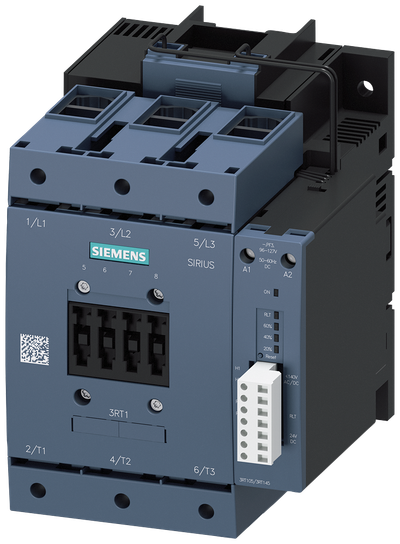

Siemens S6 contactor, 55KW/400V/AC-3 3RT1054-1PP35
Siemens

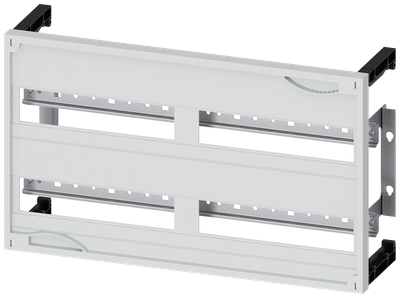

Siemens Alpha 400/630 Din, Set for Install 8GK4301-2KK22
Siemens

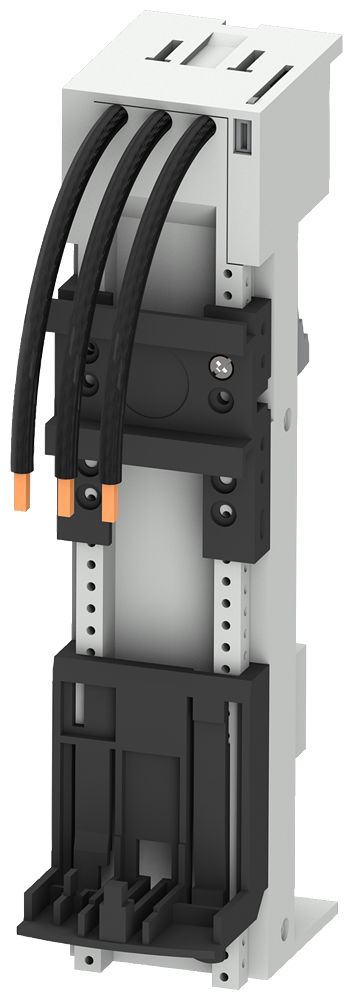

Siemens Device Adapter S00/0, 25A, for 60mm Busbar System 45X200MM Long Special Cables Welded On, Awg 12
8US1251-5DS10
Siemens

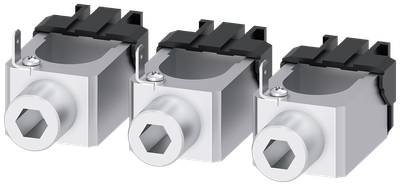

Siemens SENTRON 3VA92530JG12 — Cu/Al box terminal, 35–185 mm², 3VA12
Siemens

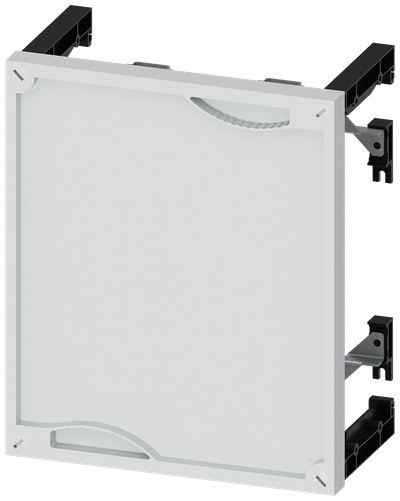

Siemens Alpha 400/630 Din, Set for Terminal blockr with Terminal Support, Felt Cover without Cut-Out 8GK4402-2KK12
