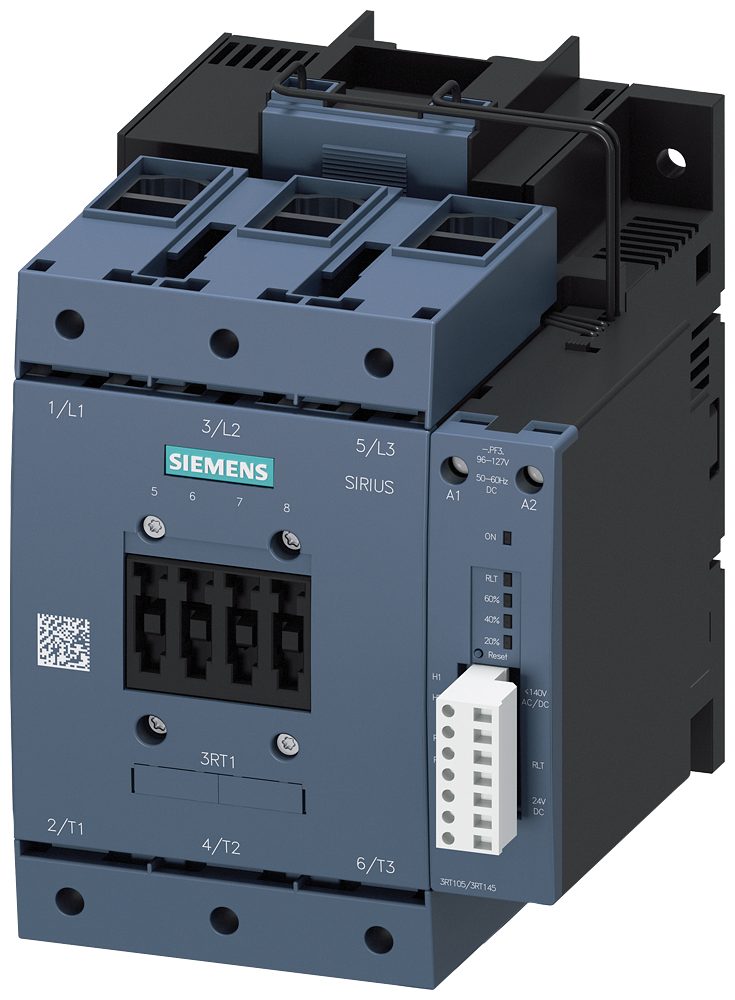

Siemens S6 contactor, 55KW/400V/AC-3 3RT1054-1PP35
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1054-1PP35 S6 contactor, 55KW/400V/AC-3.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1054-1PP35
- EAN / GTIN
- 4011209510470
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 55 kW
- Utilization category
- AC-3
- Width
- 140 mm
- Height
- 172 mm
- Depth
- 170 mm
- Rated operation power at AC-3, 400 V
- 55 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 115 A
- Rated operation current Ie at AC-1, 400 V
- 160 A
- Type of electrical connection of main circuit
- Frame clamp
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 97 A
- Rated operation power at AC-4, 400 V
- 55 kW
- Rated operation power NEMA
- 100 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209510470
- SAP 1000068003
- Code 8745062
Product Documentation
More from Siemens
Siemens
Siemens Alpha 400/630 Din, Set for Install 8GK4301-2KK22
Siemens
Siemens Device Adapter S00/0, 25A, for 60mm Busbar System 45X200MM Long Special Cables Welded On, Awg 12
8US1251-5DS10
Siemens
Siemens SENTRON 3VA92530JG12 — Cu/Al box terminal, 35–185 mm², 3VA12
Siemens
Siemens Alpha 400/630 Din, Set for Terminal blockr with Terminal Support, Felt Cover without Cut-Out 8GK4402-2KK12
Siemens
Siemens SIMATIC S7 automation module 6ES7401-1DA01-0AA0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE44-0UP0
Siemens
Siemens SIRIUS 3RP25 Time relay -Electronic,delay 3RP2513-2AW30
Siemens
Siemens Cover H: 550 mm W: 800 mm
8PQ2055-8BA01
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT1054-1PP35?
- 3RT1054-1PP35 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT1054-1PP35.
- What is the HS code for 3RT1054-1PP35?
- The customs tariff (HS) code for 3RT1054-1PP35 is 8536.90.
- Who manufactures 3RT1054-1PP35?
- 3RT1054-1PP35 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT1054-1PP35?
- Yes — the 3RT1054-1PP35 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT1054-1PP35?
- The minimum order quantity is 1.
- Is 3RT1054-1PP35 available?
- Yes — 3RT1054-1PP35 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
