Siemens SENTRON 5SP4480-7 Miniature Circuit Breaker 4-Pole C80A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SP4 miniature circuit breaker, ordering number 5SP4480-7. 4-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 80 A, rated voltage 400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–50 mm², tightening torque 3–3.5 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SP4480-7
- Series
- Siemens SENTRON 5SP4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 4-Pole
- Rated current (In)
- 80 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–50 mm²
- Terminal tightening torque
- 3–3.5 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869195629
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SP4
- HS Code
- 8536.20
Cross References
- EAN 4001869195629
- SAP 1000066893
- Code 8740461
Product Documentation
More from Siemens
Siemens
Siemens door rotary operating mechanism for harsh conditions for circuit breaker size S00/S0 EMERGENCY OFF
3RV29263C
Siemens
Siemens SIMATIC S7 automation module 6ES7154-4AB10-0AB0
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1950-0FJ500-0AA0
Siemens

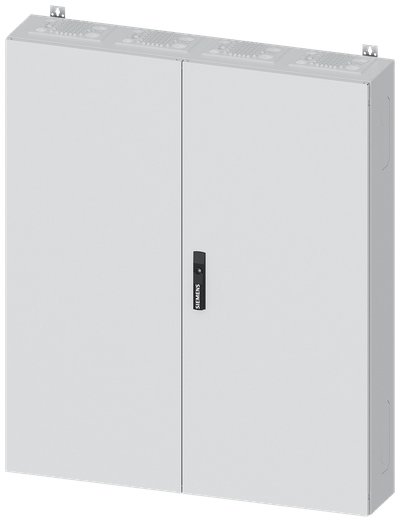

Siemens Alpha 400 Din, Panel board Surface-mounted mounting, Delivery Form Flat Pack, Ap-Cabinet, Colour Ral 9016 8GK1102-6KK42
Siemens
Siemens SIMATIC, electronic module for ET200ISP, 4 AI HART, 4-Wire transducer, for connecting HART 4-Wire transmitters
6ES7134-7TD50-0AB0
Siemens
Siemens Residual current circuit breaker with overcurrent TN 6KA,18mm,30MA C20, el, adjusted I2 for residential use
5SV9316-7FM20
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE20-0UP0
Siemens

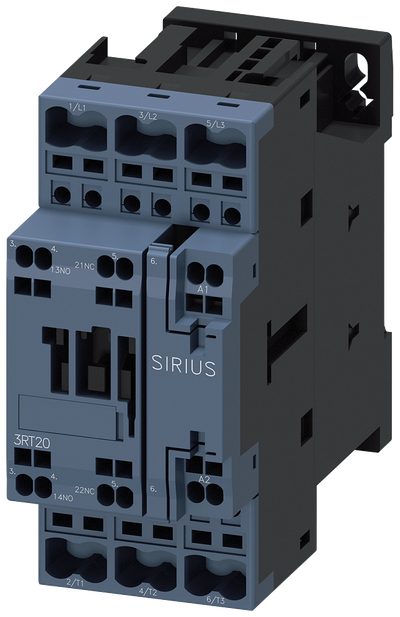

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-2AF00
