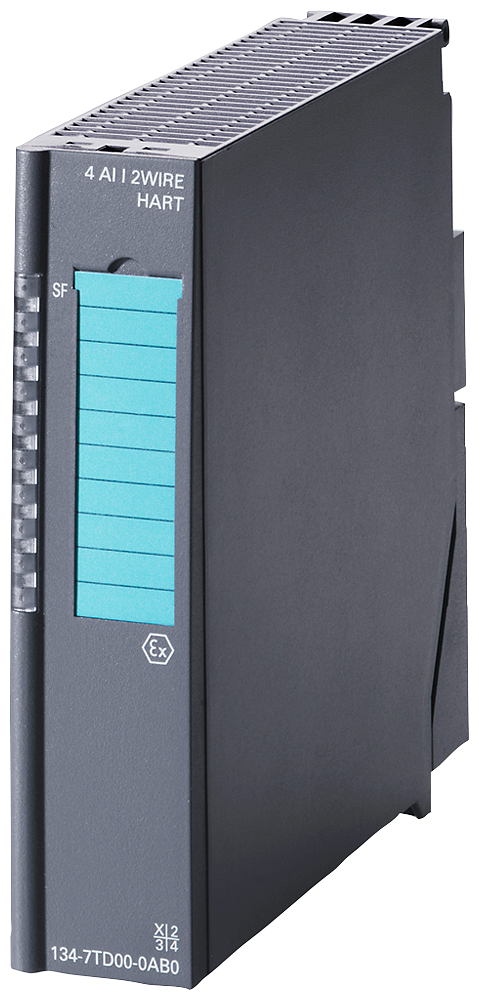

Siemens SIMATIC, electronic module for ET200ISP, 4 AI HART, 4-Wire transducer, for connecting HART 4-Wire transmitters

Siemens 6ES7134-7TD50-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform.

Manufacturer part number (MPN)

6ES7134-7TD50-0AB0

EAN / GTIN

4019169131674

HS code

8544.42

Sales unit

pcs

Product type designation

4AI I 4WIRE HART

HW functional status

15

Firmware version

V3.0.4

Rack mounting

No

Type of supply voltage

DC

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, typ.

27 mA

From load voltage (power bus), max.

30 mA

Power loss, typ.

0.4 W

Number of analog inputs

4

Permissible input current for current input (destruction limit), max.

50 mA

Cycle time (all channels) max.

120 ms; 30 ms basic conversion time x4 channels with 60 Hz, 50 Hz interference frequency suppression

Input ranges (rated values), currents — Input resistance (4 mA to 20 mA)

295 Ω

Cable length — shielded, max.

500 m

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

12 bit; + sign

Integration and conversion time/resolution per channel — Basic conversion time, including integration time (ms)

30 ms

Smoothing of measured values — Parameterizable

Yes; in 4 stages

Smoothing of measured values — Step

None: Yes; 1x cycle time

Linearity error (relative to input range), (+/-)

0.015 %

Temperature error (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, min.

-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.01 %

Operational error limit in overall temperature range — Current, relative to input range, (+/-)

0.15 %

Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)

0.1 %

Number of PROFINET interfaces

0

Diagnoses — Wire break

Yes; I load < 3.6 mA

Module for Ex(i) protection

Yes; for more Co/Lo combinations, see certificate IECEx KEM 05.0007

Maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max.

0.9 V

Maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max.

0.8 mA

Maximum values for connecting terminals for gas group IIC — Po (power output), max.

0.2 mW

Maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max.

1 000 µF

Maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max.

1 000 mH

Maximum values for connecting terminals for gas group IIC — Ui (intrinsically safe input voltage), max.

30 V

Maximum values for connecting terminals for gas group IIC — Ii (intrinsically safe input current), max.

150 mA

Maximum values for connecting terminals for gas group IIC — Pi (intrinsically safe input power), max.

1.2 W

IP degree of protection

IP30

CE mark

CE 0344

UKCA mark

DEKRA 21UKEX0090 Importer UK: Siemens plc Manchester M20 2UR

CULus

LISTED E334384

FM approval

CLASSIFIED 3025852

INMETRO certificate

UL-BR 12.0074

Use in hazardous areas — ATEX marking

II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb

Use in hazardous areas — ATEX certificate

KEMA 04 ATEX 1245

Use in hazardous areas — IECEx

IECEx KEM 05.0007

Use in hazardous areas — CCC Ex

2020322316002942

Use in hazardous areas — EAC Ex

PB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC

Use in hazardous areas — FM marking

Class I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G

Use in hazardous areas — Explosion protection category for gas

ATEX gas explosion protection, Zone 1

Use in hazardous areas — Explosion protection category for dust

ATEX dust explosion protection, Zone 21 always install in corresponding enclosure

Design of electrical connection

Screw/spring-type terminal

Dimensions — Width

30 mm

Dimensions — Height

129 mm

Dimensions — Depth

136.5 mm

Weight, approx.

230 g

HS Code

8544.42
