Siemens SENTRON 5SP4292-7 Miniature Circuit Breaker 2-Pole C125A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SP4 miniature circuit breaker, ordering number 5SP4292-7. 2-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 125 A, rated voltage 400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–50 mm², tightening torque 3–3.5 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SP4292-7
- Series
- Siemens SENTRON 5SP4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 2-Pole
- Rated current (In)
- 125 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–50 mm²
- Terminal tightening torque
- 3–3.5 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869195285
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 3 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SP4
- HS Code
- 8536.20
Cross References
- EAN 4001869195285
- SAP 1000006114
- Code 852070
Product Documentation
More from Siemens
Siemens
Siemens Busbar, 16 mm² 1 Phase, L= 214mm with End caps 5ST3702
Siemens

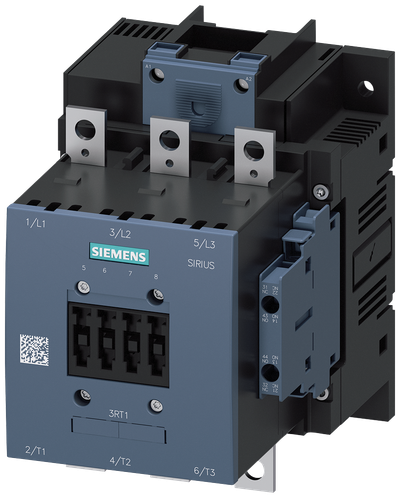

Siemens S6 contactor, 75KW/400V/AC-3 3RT1055-6AF36
Siemens

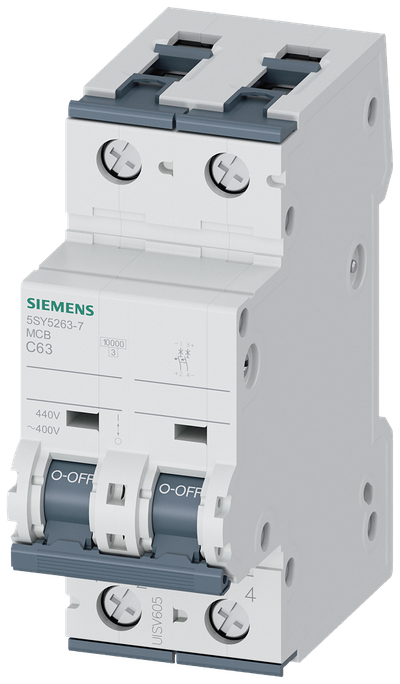

Siemens SENTRON 5SY5263-7 Miniature Circuit Breaker 2-Pole C63A 10KA
Siemens

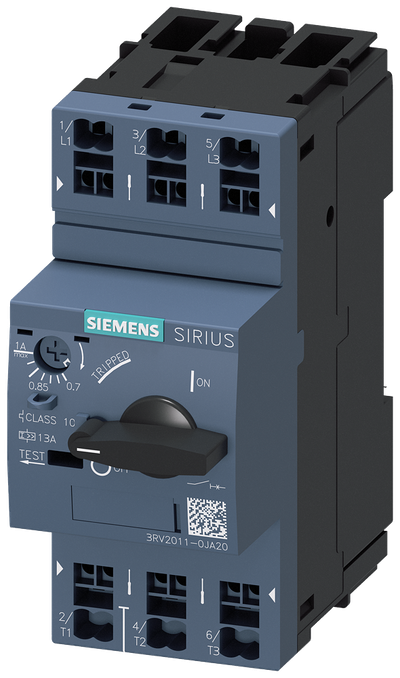

Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2011-0JA20
Siemens

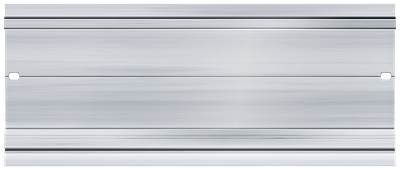

Siemens SIMATIC S7 automation module 6ES7590-1AE80-0AA0
Siemens

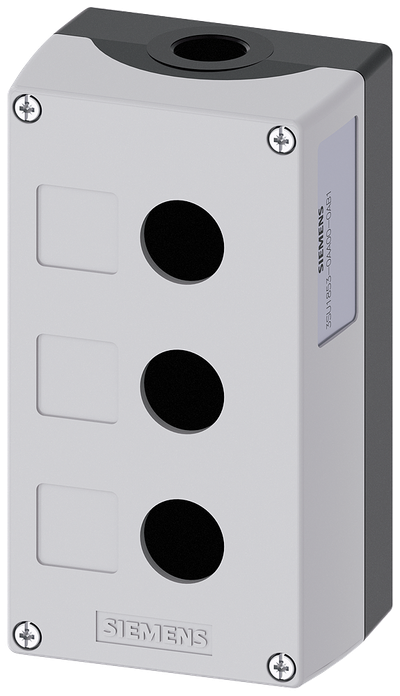

Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 3 control points, without equipment, Recess for labels, floor mounting, 1XM20 each on top and bottom
