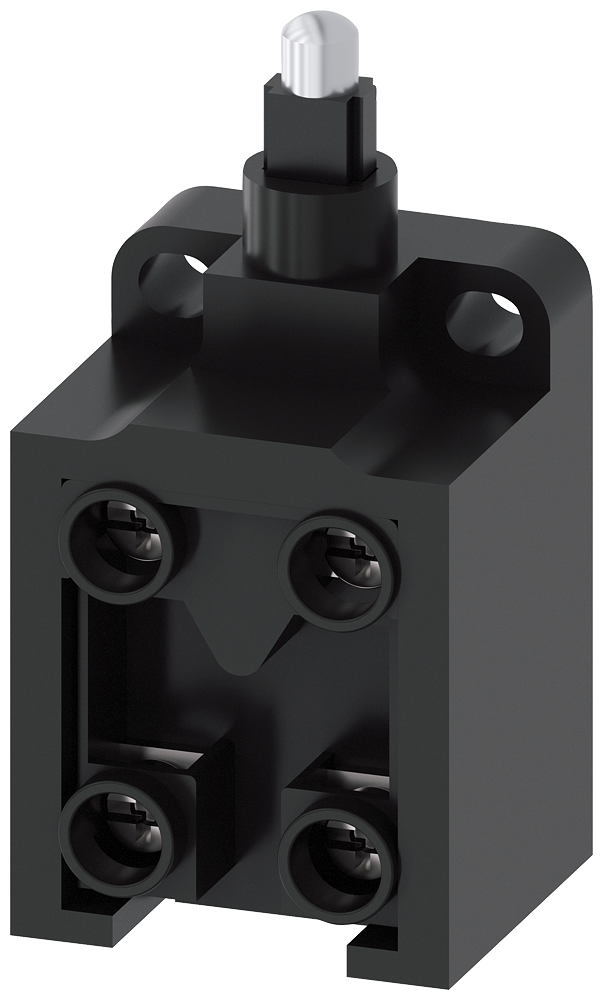

Siemens Position switch Plastic enclosure open type 30 mm 1NO/1NC quick action contacts Metal plunger, IP20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SE5250-0CC05 Position switch Plastic enclosure open type 30 mm 1NO/1NC quick action contacts Metal plunger, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 3SE5250-0CC05
- EAN / GTIN
- 4011209725058
- HS code
- 8536.90
- Sales unit
- pcs
- IP rating
- IP20
- Contact configuration
- 1 NO / 1 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 6 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP20
- Number of safety auxiliary contacts
- 1
- Type of control element
- Plunger
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at AC-15, 24 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Rated operation current Ie at DC-13, 24 V
- 3 A
- Width sensor
- 30 mm
- Height of sensor
- 59 mm
- Length of sensor
- 59.2 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–85 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209725058
- SAP 1000313637
- Code 8979268
Product Documentation
More from Siemens
Siemens

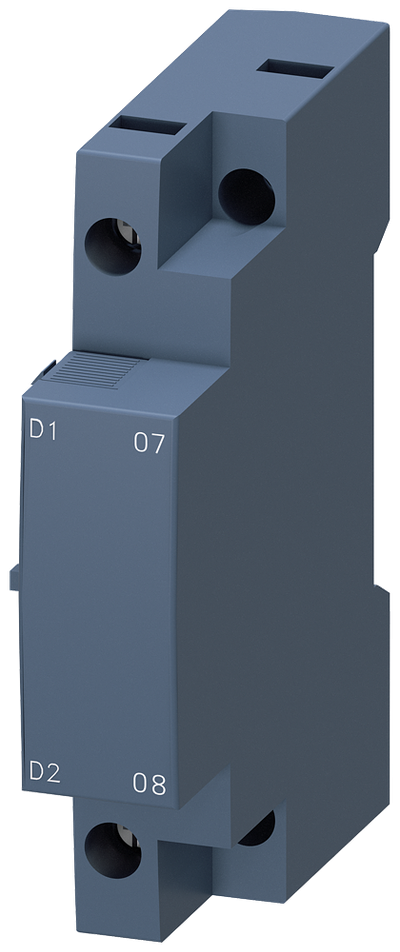

Siemens Nullvoltagestrigger AC 400V/50HZ 2 NO
3RV2922-1CV0
Siemens

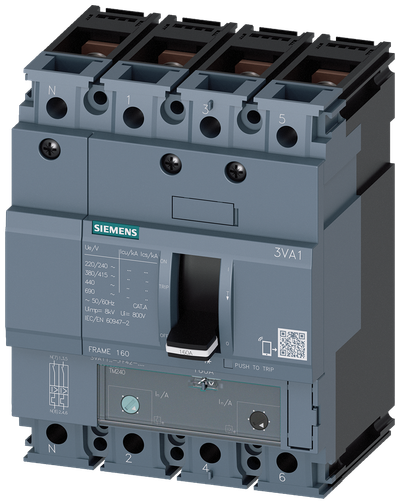

Siemens 3VA11, 55KA, 4-Pole, TM240, IN=125A,IR=87,5A 3VA1112-5GF42-0AA0
Siemens

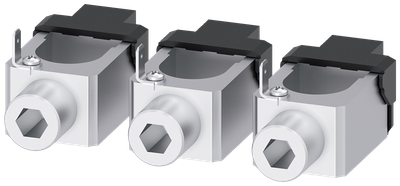

Siemens SENTRON 3VA9263-0JG12 — Cu/Al box terminal, 16–185 mm², 3VA20 / 3VA21 / 3VA22
Siemens

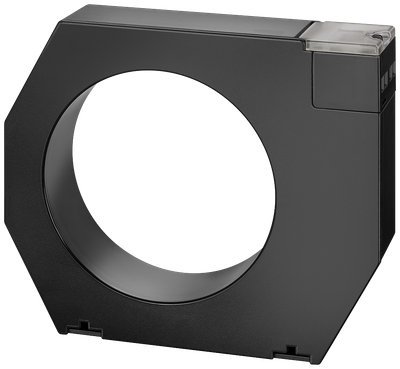

Siemens SUMMATION CURRENT TRANSFORMER 210mm, for use sammens with earth fault monitoring relay 1632163, 64 and 65
5SV8706-0KK
Siemens

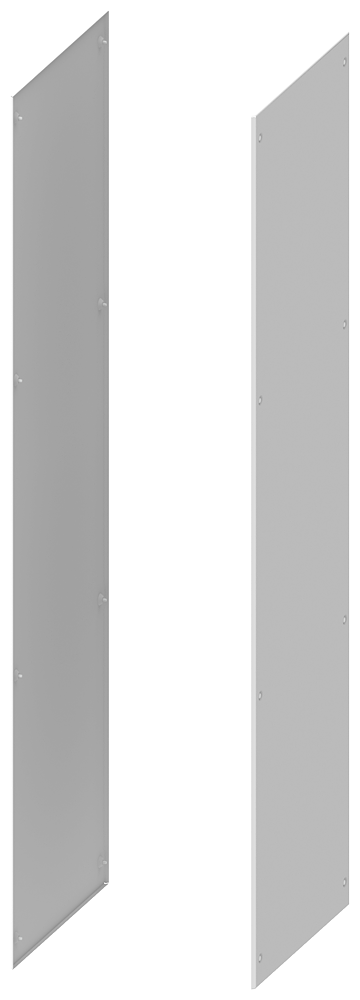

Siemens Side panel D: 600 mm 1 set = 2 units
8PQ2520-6BA02
Siemens
Siemens 5TE8214
Siemens

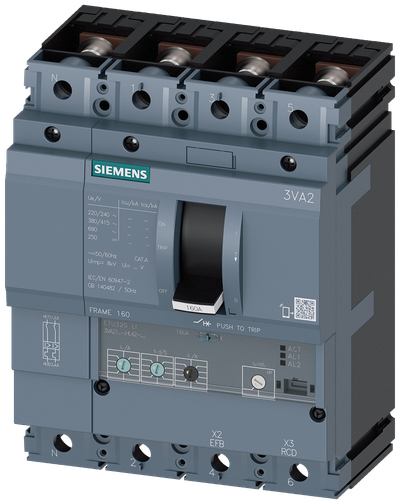

Siemens MCCB_3VA21_4P_55KA_ETU320,LI,IN=160A,IR=64A-160A,II=1,5-10XIN,,B
