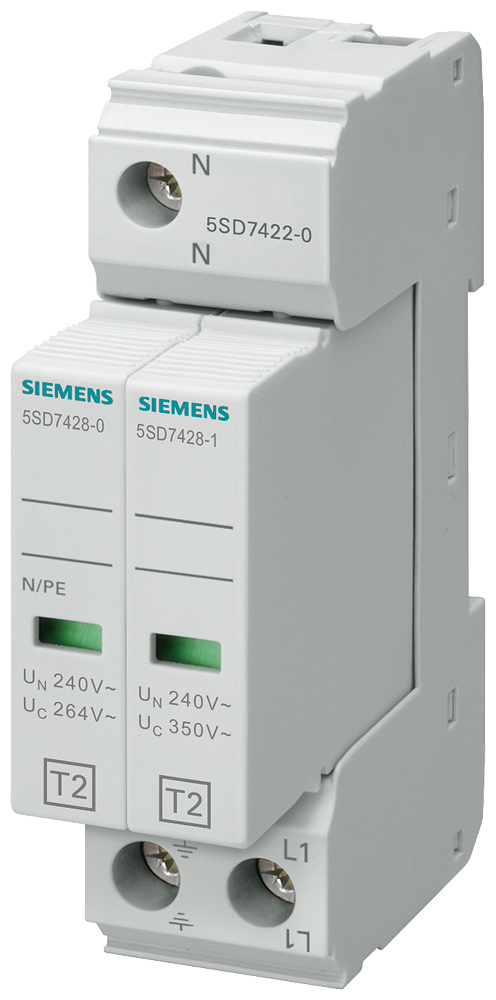

Siemens 5SD74220
Pricing
Request a quote
We reply within 24 hours
Overview
Siemens 5SD74220 is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; Nominal voltage AC: 230 V; Max. continuous voltage AC: 350 V; Voltage protection level L-N: 1.4 kV; Voltage protection level N-PE: 1.5 kV; Mounting method: DIN rail (top hat rail) 35 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SD74220
- EAN / GTIN
- 4001869340296
- Sales unit
- pcs
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 40 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level L-N
- 1.4 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 63 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- Signalling at the device
- None
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4001869340296
- SAP 1000078557
- Code 8767431
Product Documentation
