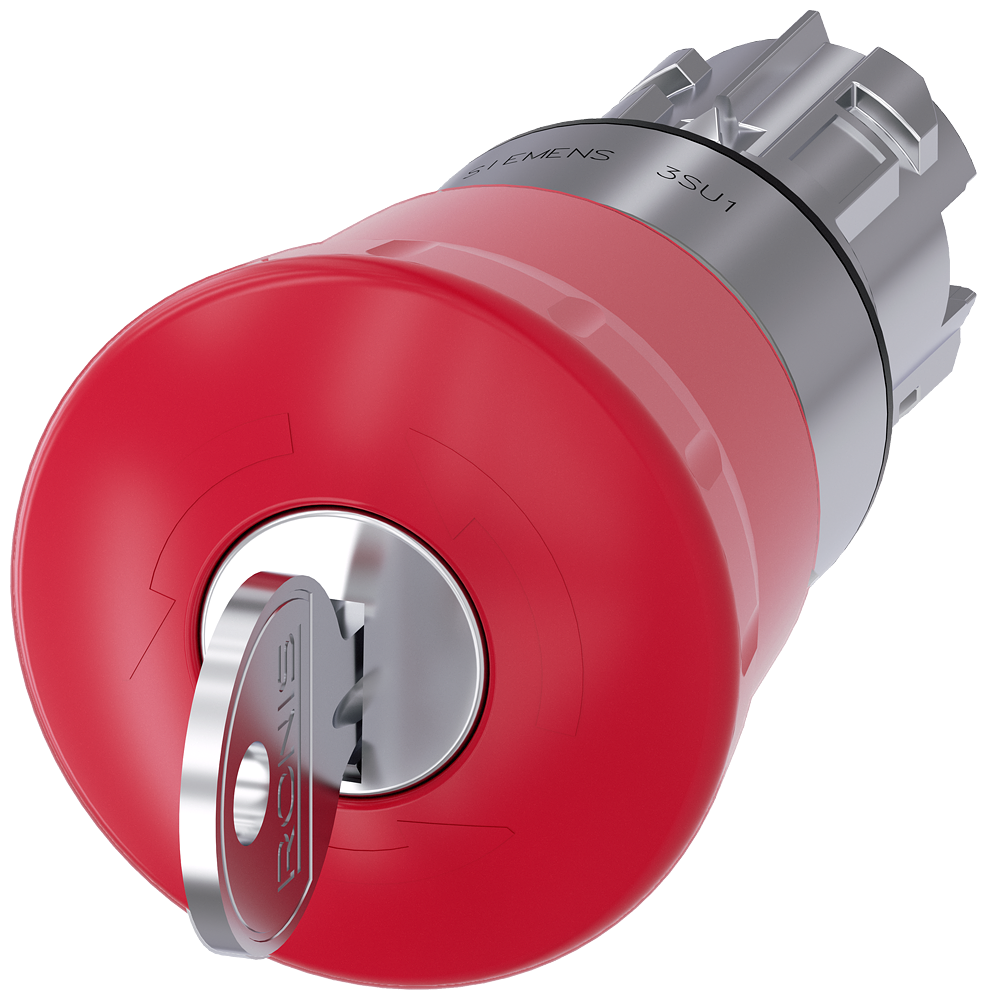

Siemens SIRIUS ACT EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, with RONIS lock, lock number SB30, positive latching, acc. to EN ISO 13850, key-operated release
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1050-1HF20-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 22mm blank metal design Emergency stop button with key.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1050-1HF20-0AA0
- EAN / GTIN
- 4011209947016
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- EMERGENCY STOP mushroom pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- positive latching
- Principle of operation of the actuating element
- latching
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color — of the actuating element
- red
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 40 mm
- Type of unlocking device
- Unlocking
- Number of switching positions
- 2
- Switch position for key distraction
- O
- Lock make
- RONIS
- Key number
- SB30
- Product component front ring
- No
- Product function — positive opening
- Yes
- Product function — EMERGENCY OFF function
- Yes
- Product function — EMERGENCY STOP function
- Yes
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Operating frequency maximum
- 600 1/h
- Mechanical service life (operating cycles) typical
- 300 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 115 g
- Product function suitable for safety function
- Yes
- Service life maximum
- 20 a
- Test wear-related service life necessary
- Yes
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 100 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- Device type according to ISO 13849-1
- 3
- Safety device type according to IEC 61508-2
- Type A
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 67 mm
- Installation width
- 40 mm
- Installation depth
- 26.3 mm
- Hole diameter
- 22.3 mm
- Colour button
- Red
- Unlocking method
- Key-release
- Diameter cap
- 40 mm
- Type of button
- High
- With lighting
- No
- Width opening
- 40 mm
- Height opening
- 67.1 mm
- Degree of protection (IP)
- IP67/IP69K
- Construction type lens
- Round
- Country of origin
- Germany
