Siemens Comfort panel KP1200

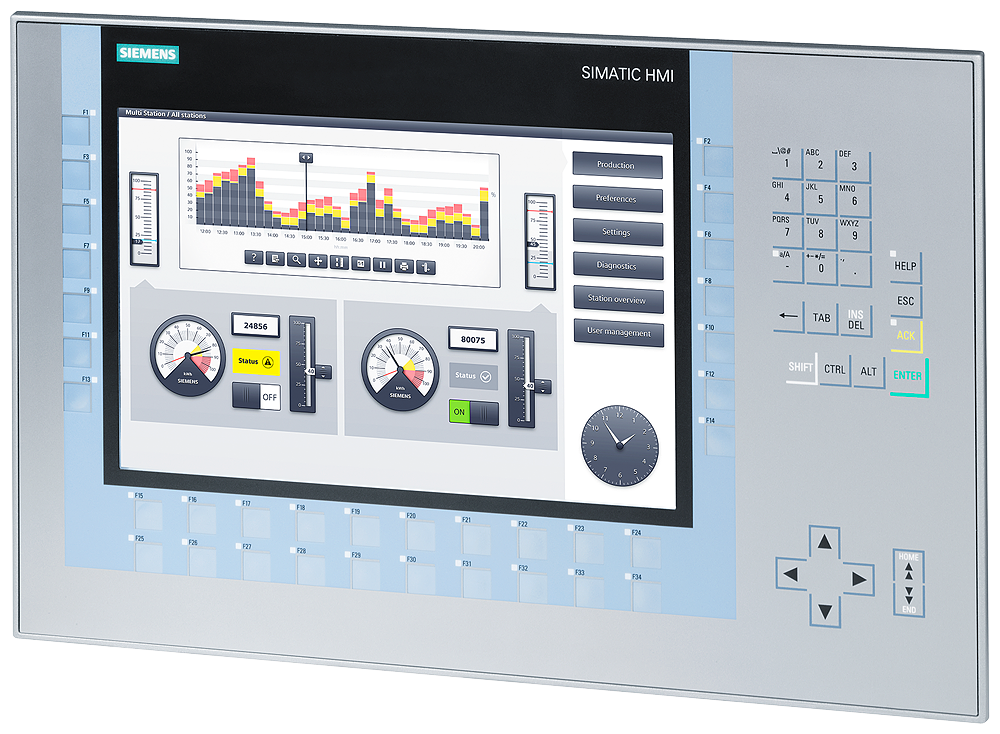

Siemens 6AV2124-1MC01-0AX0 Comfort panel KP1200.

Manufacturer part number (MPN)

6AV2124-1MC01-0AX0

EAN / GTIN

4025515079033

Sales unit

pcs

Product type designation

KP1200 Comfort

Display width

261.1 mm

Display height

163.2 mm

Number of colors

16 777 216

Backlighting — MTBF backlighting (at 25 °C)

80 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Function keys — Number of function keys

34

Function keys — Number of function keys with LEDs

34

DP direct LEDs (LEDs as S7 output I/O) — F1...Fx

34

Direct keys (keys as S7 input I/O) — F1...Fx

34

Direct keys (keys as S7 input I/O) — Direct keys (touch buttons as S7 input I/O)

0

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.85 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

20 W

Memory available for user data

12 Mbyte

Number of industrial Ethernet interfaces

1; 2 ports (switch)

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of RS 422 interfaces

1

Number of RS 232 interfaces

0

Number of USB interfaces

2; USB 2.0

Number of USB interfaces — USB Mini B

1; 5-pole

Number of 20 mA interfaces (TTY)

0

Number of parallel interfaces

0

Number of SD card slots

2

Industrial Ethernet — Number of ports of the integrated switch

2

Marine approval — Germanischer Lloyd (GL)

Yes; As of product version: 10

Marine approval — American Bureau of Shipping (ABS)

Yes; As of product version: 10

Marine approval — Bureau Veritas (BV)

Yes; As of product version: 10

Marine approval — It Norske Veritas (DNV)

Yes; As of product version: 10

Marine approval — Lloyds Register of Shipping (LRS)

Yes; As of product version: 10

Marine approval — Nippon Kaiji Kyokai (Class NK)

Yes; As of product version: 10

Operation (vertical installation) — For vertical installation, min.

0 °C

Operation (vertical installation) — For vertical installation, max.

50 °C; (55 °C, see entry ID: 64847814)

Operation (max. tilt angle) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle) — At maximum tilt angle, max.

40 °C

Operation (vertical installation, portrait format) — For vertical installation, min.

0 °C

Operation (vertical installation, portrait format) — For vertical installation, max.

40 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, max.

35 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %; no condensation

Online languages — Number of online/runtime languages

32

Help system — Number of characters per info text

70

Message system — Number of alarm classes

32

Message system — Number of bit messages

4 000

Message system — Number of analog messages

200

Message system — Number of characters per message

80

Message system — Number of process values per message

8

Message buffer — Number of entries

1 024

Recipe management — Number of recipes

300

Recipe management — Size of internal recipe memory

2 Mbyte

Width of the housing front

454 mm

Height of housing front

289 mm

Mounting cutout, width

434 mm

Mounting cutout, height

269 mm

Mounting depth

64.6 mm

Power consumption

20 W

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

2

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

Type of display

TFT

Number of colours of the display

16777216

Screen diagonal

12.1 inch

Number of pixels, horizontal

1280

Number of pixels, vertical

800

Usable project memory/user memory

12000 kByte

Number of function buttons, programmable

34

Number of buttons with LED

34

Number of system buttons

28

Touch technology

None

With touch screen

No

Number of password levels

50

Number of online languages

32

Degree of protection (IP), front side

IP65

Width of the front

454 mm

Height of the front

289 mm

Built-in depth

65 mm

Country of origin

Germany

HS Code

8537.10
