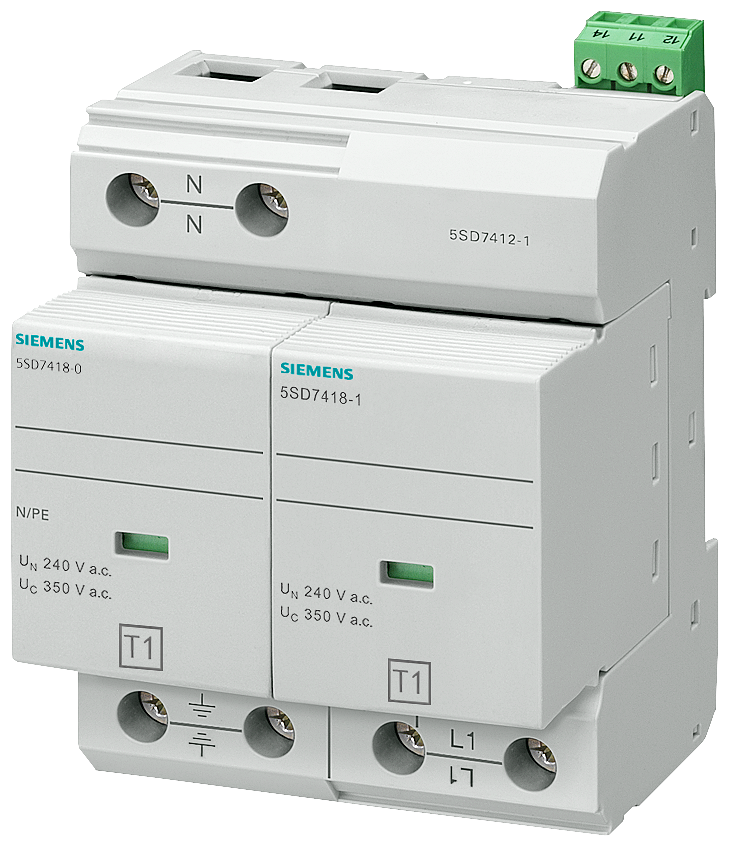

Siemens 5SD7412-1
Pricing
Request a quote
We reply within 24 hours
Overview
Siemens 5SD7412-1 is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; Nominal voltage AC: 230 V; Max. continuous voltage AC: 350 V; Voltage protection level L-N: 1.5 kV; Voltage protection level N-PE: 1.5 kV; Mounting method: DIN rail (top hat rail) 35 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SD7412-1
- EAN / GTIN
- 4001869340227
- Sales unit
- pcs
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 25 kA
- Max. discharge surge current (8/20)
- 50 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Short-circuit breaking capacity (Isccr)
- 50 kA
- Integrated short-circuit protection
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Signalling at the device
- Optical
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4001869340227
- SAP 1000021536
- Code 8166808
Product Documentation
More from Siemens
Siemens
Siemens FC FO STANDARD CABLE
6XV1847-2A
Siemens
Siemens SIRIUS 3SU1156-0AB20-1CA0 Illuminated Pushbutton 22 mm Red 1 NC 230 V AC
Siemens
Siemens MCCB_3VA21_4P_55KA_ETU550_,LSI,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,terminal Cu
3VA2140-5JP46-0AA0
Siemens
Siemens 3VA1196-3ED32-0AA0 MCCB 3VA11 25 kA 3-Pole TM210 Thermal/Instantaneous 16 A
Siemens
Siemens Sinamics V20 EMC Termineringskit for framesize A
6SL3266-1AA00-0VA0
Siemens
Siemens Load-break switch 125A,size 2,3-Pole,operation side left-hand,box terminal for Cu cable
3KD3234-2NE10-0
Siemens
Siemens SENTRON 3VA9111-0WJ30 — Insulation backplate, 3-Pole, 3VA10 / 3VA11
Siemens
Siemens SENTRON 5SY4604-7 Miniature Circuit Breaker 3+N-Pole C4A 10KA
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SD7412-1?
- 5SD7412-1 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SD7412-1.
- What is the HS code for 5SD7412-1?
- The customs tariff (HS) code for 5SD7412-1 is 8536.30.
- Who manufactures 5SD7412-1?
- 5SD7412-1 is a Siemens product in the Switchgear & Protection range.
- Is a datasheet available for 5SD7412-1?
- Yes — the 5SD7412-1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SD7412-1?
- The minimum order quantity is 1.
- Is 5SD7412-1 available?
- Yes — 5SD7412-1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
