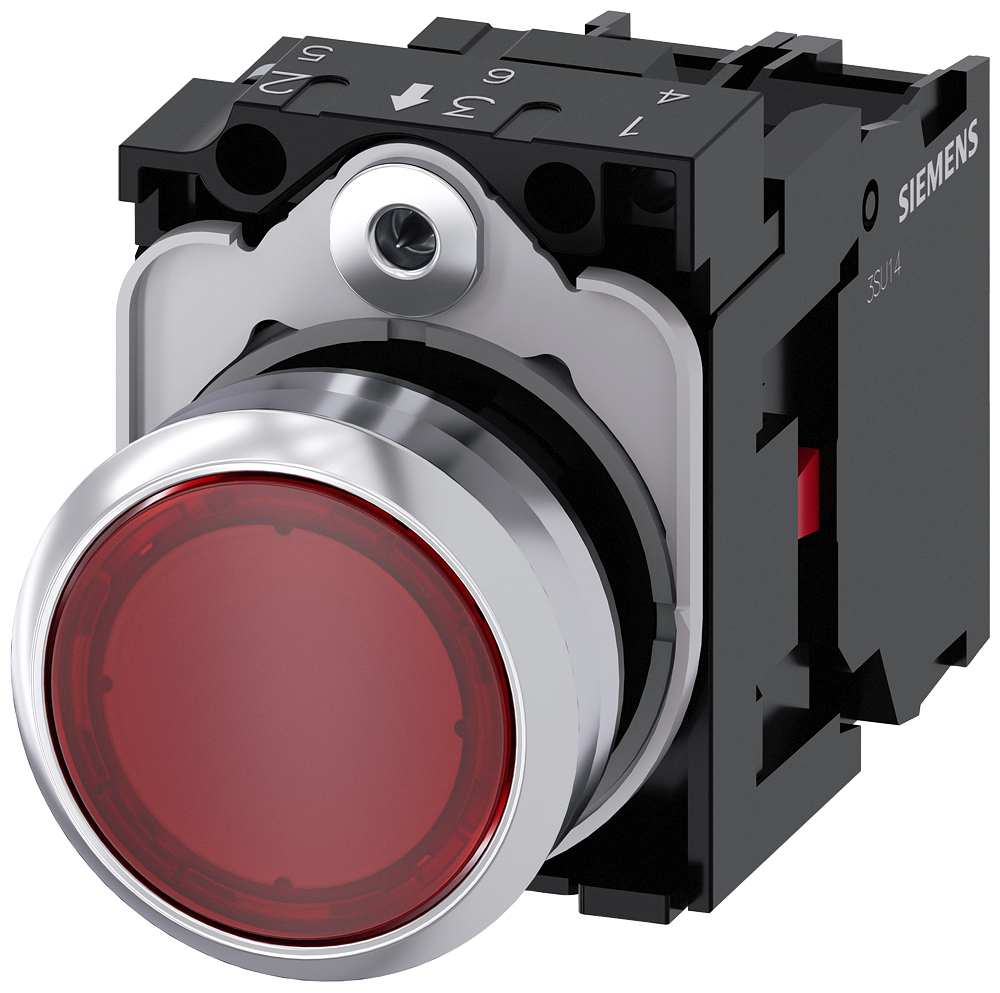

Siemens SIRIUS 3SU1156-0AB20-1CA0 Illuminated Pushbutton 22 mm Red 1 NC 230 V AC

Siemens 3SU1156-0AB20-1CA0 is a SIRIUS ACT illuminated pushbutton, 22 mm round metal in high-gloss finish, with a red flat momentary-action actuator. Supplied complete with holder, one NC contact module and an integrated LED module for 230 V AC, using screw terminals. Rated insulation voltage 320 V with IP66/IP67/IP69K protection and positive-opening operation.

Manufacturer part number (MPN)

3SU1156-0AB20-1CA0

EAN / GTIN

4011209966468

Sales unit

pcs

Voltage

230 V

Contact configuration

1 NC

Product brand name

SIRIUS ACT

Product designation

Illuminated pushbuttons

Design of the product

Complete unit

Product type designation

3SU1

Product line

Metal, shiny, 22 mm

Manufacturer's article number — of supplied contact module at position 1

3SU1400-1AA10-1CA0

Manufacturer's article number — of supplied LED module

3SU1401-1BF20-1AA0

Manufacturer's article number — of the supplied holder

3SU1550-0AA10-0AA0

Manufacturer's article number — of the supplied actuator

3SU1051-0AB20-0AA0

Number of command points

1

Design of the actuating element

Button, flat

Principle of operation of the actuating element

momentary contact type

Product extension optional light source

Yes

Color of the actuating element

red

Material of the actuating element

plastic

Shape of the actuating element

round

Outer diameter of the actuating element

29.45 mm

Number of contact modules

1

Product component front ring

Yes

Design of the front ring

Standard

Material of the front ring

Metal, high gloss

Color of the front ring

silver

Material of the holder

Plastic

Number of LED modules

1

Product function positive opening

Yes

Product component light source

Yes

Insulation voltage rated value

320 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

4 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Operating frequency maximum

3 600 1/h

Mechanical service life (operating cycles) typical

3 000 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Reference code according to IEC 81346-2

S

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

77 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Type of voltage of the supply voltage of the light source

AC

Supply voltage of the light source at AC — at 50 Hz rated value

230 V

Supply voltage of the light source at AC — at 60 Hz rated value

230 V

Inrush current of LED module maximum

3 A

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

1

Number of NO contacts for auxiliary contacts

0

Type of electrical connection

screw terminal

Type of electrical connection — of modules and accessories

Screw-type terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque with screw-type terminals

0.8 ... 0.9 N·m

Type of light source

LED

Color of the light source

red

Light intensity

450 ... 1 120 mcd

Product function suitable for safety function

Yes

Test wear-related service life necessary

Yes

Proportion of dangerous failures — with low demand rate according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920

20 %

B10 value with high demand rate according to SN 31920

3 000 000

Failure rate [FIT] with low demand rate per NC contact according to SN 31920

100 FIT

Device type according to ISO 13849-1

3

Safety device type according to IEC 61508-2

Type A

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method

front plate mounting

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Shape of the installation opening

round

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

11 mm

Installation width

29.5 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Colour button

Red

Number of command positions

1

Type of button

Mushroom

Colour front ring

Chrome

Type of electric connection

Screw connection

Width opening

29.5 mm

Height opening

11 mm

Degree of protection (IP)

IP67/IP69K

Material front ring

Plastic

Supply voltage lamp

230 V

Number of contacts as normally closed contact

1

Country of origin

Germany

HS Code

8536.50
