SG Armaturen

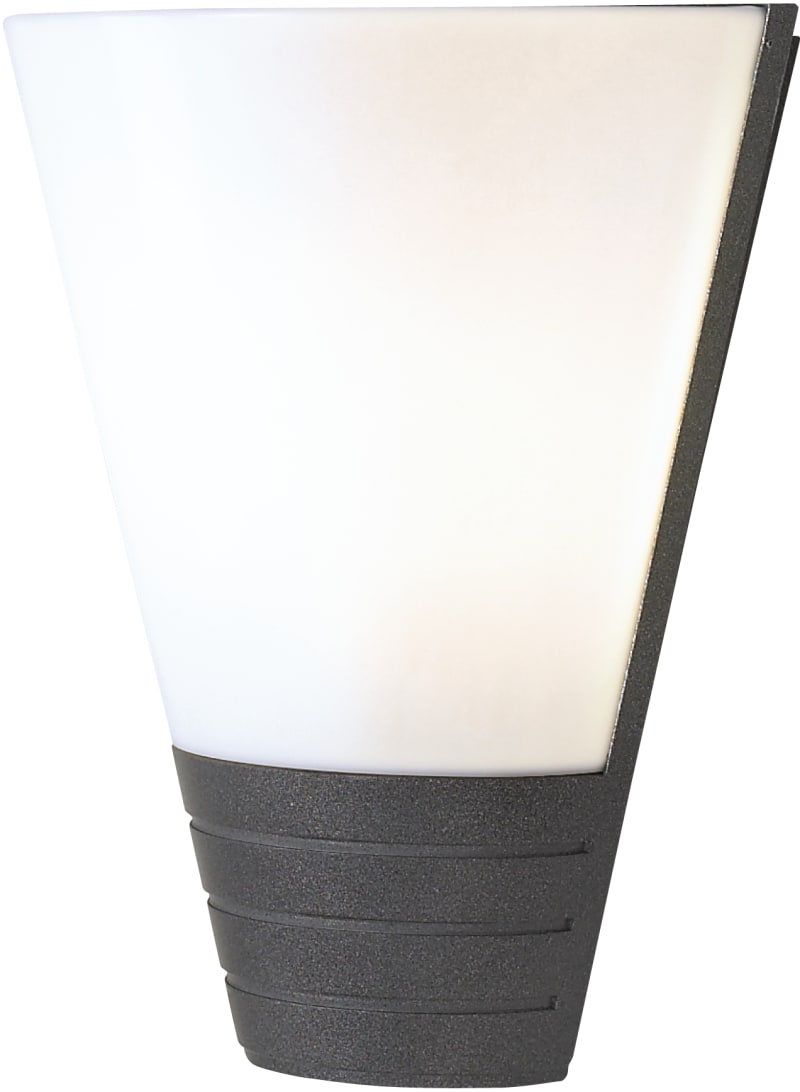

RAY WALL 18W/730 IP54
Part number8246071235EAN / GTIN5703821007153HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246071235 Ray Wall 18W LED - Ra>80 - CD IP54 Class In - 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 8246071235
- EAN / GTIN
- 5703821007153
- Sales unit
- pcs
- IP rating
- IP54
- Power
- 18 W
- Efficacy
- 63 lm/W
- Lumen
- 1130lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L90/B10>
- Mounting
- Wall, Outdoor
- System wattage
- 18W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0.31
- Type of light source
- LED
- Luminous flux
- 1130lm
- MacAdams factor
- SDCM: 4
- Light distribution
- Direct
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK10
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Die-cast aluminium
- Optics
- Polycarbonat (PC)
- Length (mm) L
- 189
- Width (mm) W
- 322
- Height (mm) H
- 381
- Weight (kg) gross/net
- 4.2 / 4
- Packaging dimensions (mm)
- 400 x 350 x 200
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821007153
- SAP 1200056070
- Code 81904657
Product Documentation
Document preview: RAY WALL 18W/730 IP54 (8246071235) — Specification sheet
