SG Armaturen

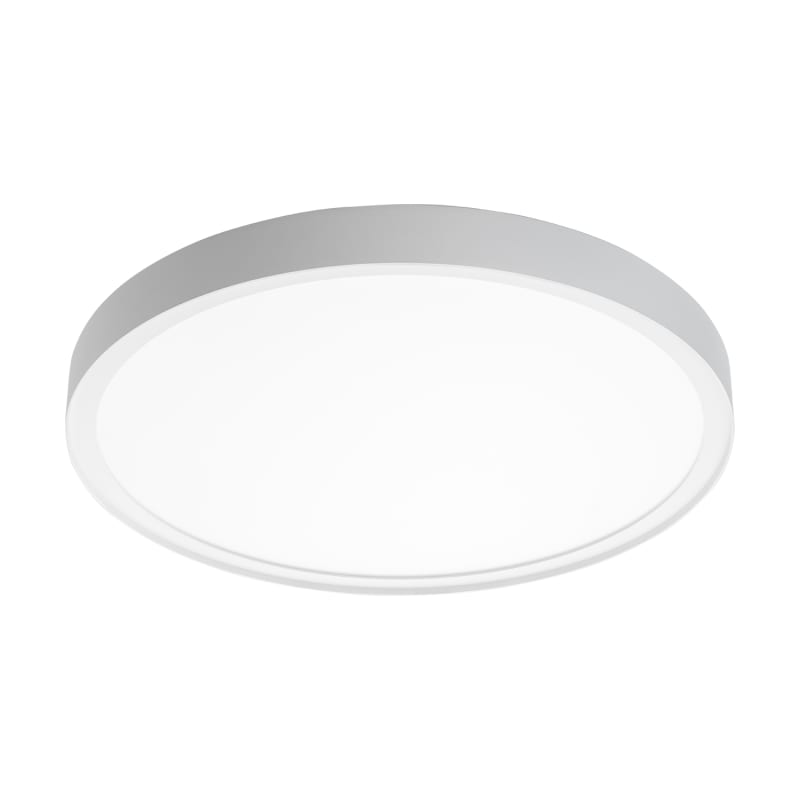

DISC 480 D/In White 34W 3K/4K Sensor DIM
Part number606208EAN / GTIN7021986062083HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606208 DISC 480 D/In WHITE 3000/4000K SENSOR DIM, 34, 4420lm, Ra>80, SDCM 3, L80/B20>100.000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606208
- EAN / GTIN
- 7021986062083
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 34 W
- Efficacy
- 122 lm/W
- Lumen
- 4160/4420lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 4160/4420lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,07
- Stroboscopic flicker (SVM)
- 0,05
- Type
- Sensor Dim
- Sensor type
- Pure motion sensor, independent of lux level
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D/D/C/C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium/plastic
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 62
- Diameter (mm) D
- 467
- Weight (kg) gross/net
- 3.6 / 3.188
- Packaging dimensions (mm)
- 490 x 485 x 70
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986062083
- SAP 1200880688
- Code 84120015
Product Documentation
Document preview: DISC 480 D/In White 34W 3K/4K Sensor DIM (606208) — Specification sheet
More from SG Armaturen
SG Armaturen
ZIP TUBE Pendant MINI 385mm (320523)
SG Armaturen
Ecoline 1600 D/In White 35W/840
212815
SG Armaturen
ANTI BALL TOP Cover 1200 296mm
8249044874
SG Armaturen
ZIP TUBE Pendant Micro 340mm (320507)
SG Armaturen

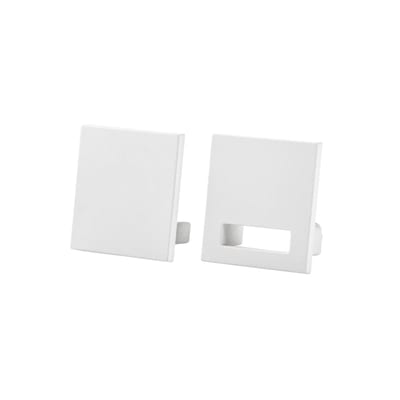

Stripline END CAP KIT SOFT White
391467
SG Armaturen

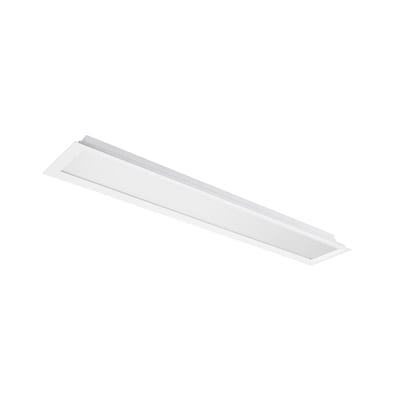

Sense LINE 120X600 10W/840 DALI Linect
212693
SG Armaturen

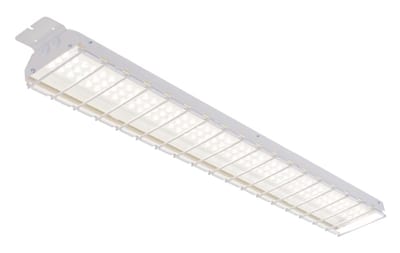

Arena 1200 Sport 79W/840 Medium
8246094322
SG Armaturen

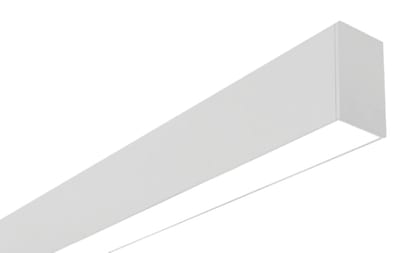

Lineal SURF 1400 22W/840 White DALI
