SG Armaturen

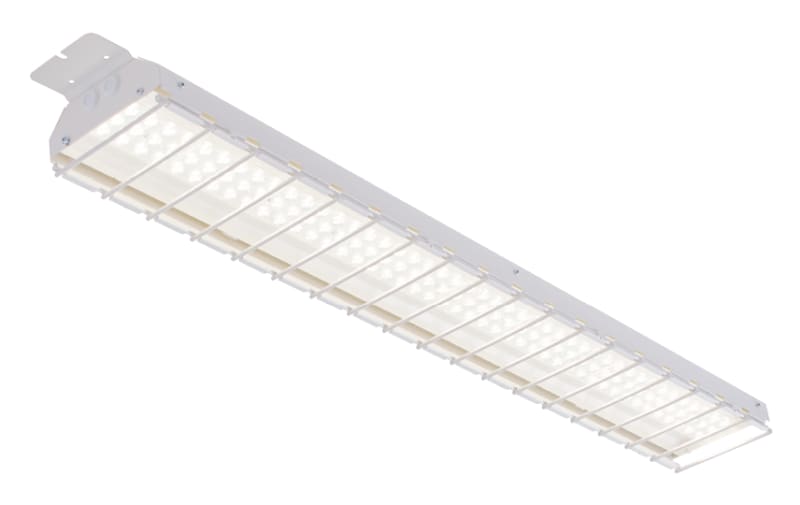

Arena 1200 Sport 79W/840 Medium
Part number8246094322EAN / GTIN5703821177221HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094322 ARENA SPORT 1200 11300lm 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094322 EAN / GTIN: 5703821177221 Sales unit: pcs Power: 79 W Efficacy: 161 lm/W Lumen: 11280lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 70W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51 Leakage current (mA): 0.22 Type of light source: LED Luminous flux: 11280lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Medium Beam angle: Medium UGR: UGR<25 Visible flicker (PstLM): 0.04 Stroboscopic flicker (SVM): 0.0 Photobiological safety: RG 1 Type: On/Off Luminaire class: Class I IK Class: IK10 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Sunda Hus: B Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 156mm Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1263 Width (mm) W: 156 Height (mm) H: 80 Weight (kg) gross/net: 8.2 / 8 Packaging dimensions (mm): 1270 x 174 x 85 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821177221
- SAP 1200136358
- Code 81997022
Product Documentation
Document preview: Arena 1200 Sport 79W/840 Medium (8246094322) — Specification sheet
More from SG Armaturen
SG Armaturen
Lineal SURF 1400 22W/840 White DALI
8246095907
SG Armaturen
Ecoline 1200 D/In White 32W/840 DALI
212805
SG Armaturen
Sense LINE 120X1200 19W/840 DALI Linect
212697
SG Armaturen
Exclusive MIDI Black 26W/940
902632
SG Armaturen
SOFT SLIM White 11W/940 DALI
3246801
SG Armaturen
TUBE MINI 3T White 14W/927 40° DALI
320740
SG Armaturen

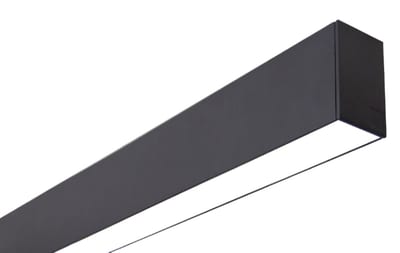

Lineal SURF 1400 22W/830 Black DALI
8246095839
SG Armaturen

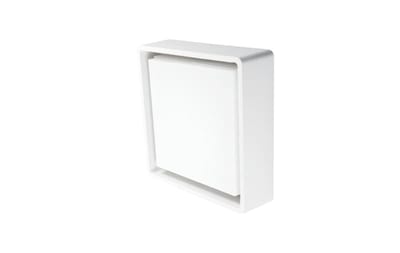

Frame SQ White 7W/830 Twilight
