SG Armaturen

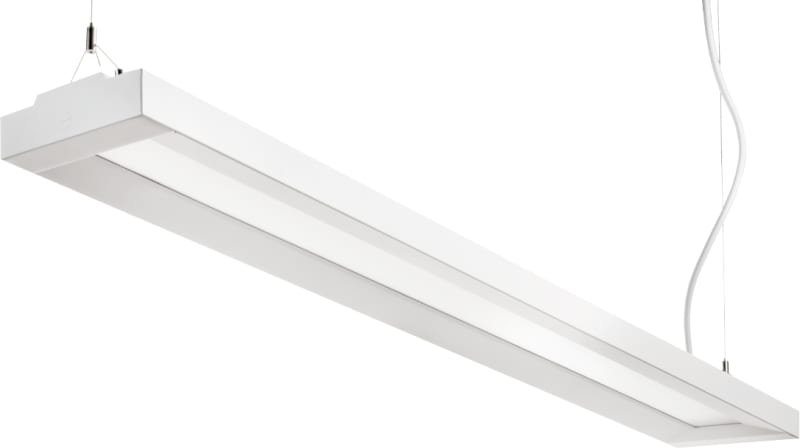

Ecoline 1200 D/In White 32W/840 DALI
Part number212805EAN / GTIN7021982128059HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212805 ECOLINE 1200 D/In WHITE 4000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 212805
- EAN / GTIN
- 7021982128059
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 32 W
- Efficacy
- 152 lm/W
- Lumen
- 4850lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 32W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0,07
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 4850lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 60/40%
- Optic
- Opal prismatic
- UGR
- UGR<16
- Visible flicker (PstLM)
- 0,04
- Stroboscopic flicker (SVM)
- 0
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
- Module
- 1200
- Wire set
- 2x2m wire kit
- Cable
- Cable 5x0,75mm² 2,5m
- Length (mm) L
- 1235
- Width (mm) W
- 166
- Height (mm) H
- 58
- Weight (kg) gross/net
- 5.15 / 4.65
- Packaging dimensions (mm)
- 1255 x 180 x 72
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982128059
- SAP 1200855477
- Code 84076018
Product Documentation
Document preview: Ecoline 1200 D/In White 32W/840 DALI (212805) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense LINE 120X1200 19W/840 DALI Linect
212697
SG Armaturen
Exclusive MIDI Black 26W/940
902632
SG Armaturen
SOFT SLIM White 11W/940 DALI
3246801
SG Armaturen
TUBE MINI 3T White 14W/927 40° DALI
320740
SG Armaturen
Lineal SURF 1400 22W/830 Black DALI
8246095839
SG Armaturen
Frame SQ White 7W/830 Twilight
605242
SG Armaturen
RAX SOFT 200 Satin 4500 40W/840
212530
SG Armaturen
Frame Round MAXI Graphite 17W/830 Sensor
605163
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
