SG Armaturen

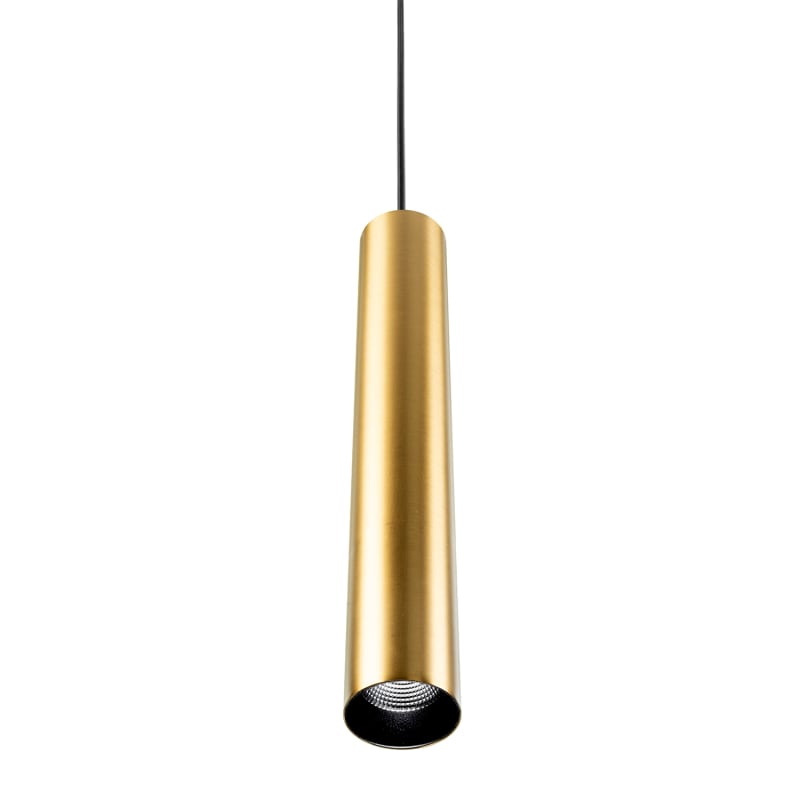

ZIP TUBE Pendant MINI 385mm (320523)
Part number320523EAN / GTIN7021983205230HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320523 ZIP TUBE PENDANT MINI 385MM BRASS 3000K, 14W, 900lm, Ra98, SDCM2, IP20, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 320523
- EAN / GTIN
- 7021983205230
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Efficacy
- 64 lm/W
- Lumen
- 900lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 14W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 43, C16: 69
- Type of light source
- LED
- Luminous flux
- 900lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector medium
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Optics
- UV-stabilized polycarbonate
- Module
- 385mm Pendant
- Cable
- Cable 3m
- Connection
- Zip track (adapter included)
- Height (mm) H
- 399
- Diameter (mm) D
- 59
- Weight (kg) gross/net
- 0.972 / 0.815
- Packaging dimensions (mm)
- 100 x 90 x 415
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- Brass
- Material cover
- Plastic, structured
- Voltage type
- AC
- Type of control gear
- Not required
- Colour consistency (McAdam ellipse)
- SDCM2
- Light outlet
- Direct
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- II
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 14 W
- Colour of light
- White
- Colour rendering index CRI
- 90-100
- Unified Glare Ratio (UGR)
- 18.2
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 59 mm
- Height/depth
- 399 mm
- Length
- 59 mm
- Diameter
- 59 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983205230
- SAP 1200966370
- Code 84309366
Product Documentation
Document preview: ZIP TUBE Pendant MINI 385mm (320523) — Specification sheet
More from SG Armaturen
SG Armaturen
Ecoline 1600 D/In White 35W/840
212815
SG Armaturen
ANTI BALL TOP Cover 1200 296mm
8249044874
SG Armaturen
ZIP TUBE Pendant Micro 340mm (320507)
SG Armaturen
Stripline END CAP KIT SOFT White
391467
SG Armaturen
Sense LINE 120X600 10W/840 DALI Linect
212693
SG Armaturen
Arena 1200 Sport 79W/840 Medium
8246094322
SG Armaturen
Lineal SURF 1400 22W/840 White DALI
8246095907
SG Armaturen

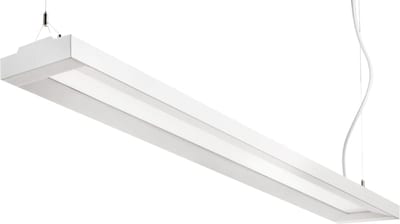

Ecoline 1200 D/In White 32W/840 DALI
