SG Armaturen

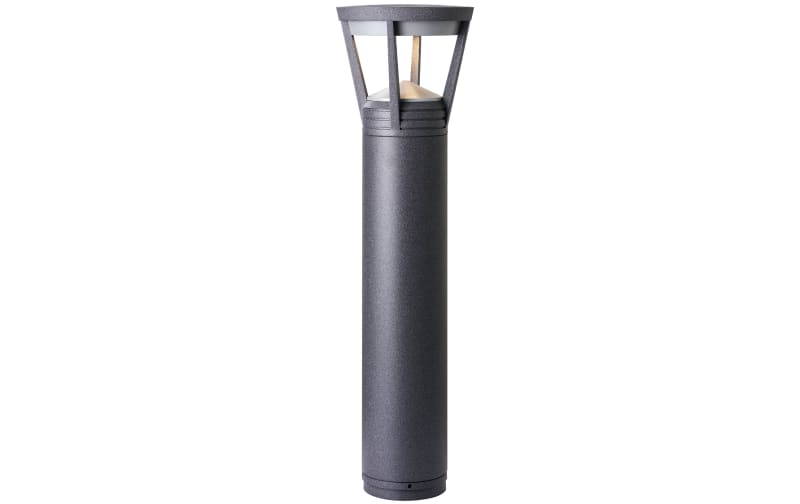

RAY Bollard II Symmetric 8W
Part number8246094377EAN / GTIN5703821177283HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094377 RAY BOLLARD II 900 SYM. GREY 8W 580lm 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094377
- EAN / GTIN
- 5703821177283
- Sales unit
- pcs
- Power
- 8 W
- Efficacy
- 98 lm/W
- Lumen
- 590lm
- IP Class
- IP54
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L80/B10>
- Mounting
- Onto surfaces or ground anchor, Outdoor
- System wattage
- 6W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 590lm
- MacAdams factor
- SDCM: 4
- Light distribution
- Symmetric
- Optic
- Lens
- Type
- On/Off
- Luminaire class
- Class II
- IK Class
- IK10
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Grey SIZE S/30
- Optics
- Acrylic (PMMA)
- Height (mm) H
- 900
- Diameter (mm) D
- 260
- Weight (kg) gross/net
- 12.7 / 12.5
- Packaging dimensions (mm)
- 900 x 260 x 300
- Protection class according to IEC 61140
- II
- Width
- 260 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Housing colour
- Anthracite
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 6 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- With light sensor
- No
- Luminous intensity
- 580 cd
- Number of poles
- 2
- Length
- 900 mm
- Height/depth
- 900 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Impact strength
- IK10
- Nominal voltage
- 230 V
- Degree of protection (IP)
- IP54
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- No
- Max. system power
- 6 W
- Rated luminous flux according to IEC 62722-2-1
- 580 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Light distributor
- Reflector
- Luminaire efficacy
- 98 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 5703821177283
- SAP 1200141302
- Code 82034572
Product Documentation
Document preview: RAY Bollard II Symmetric 8W (8246094377) — Specification sheet
