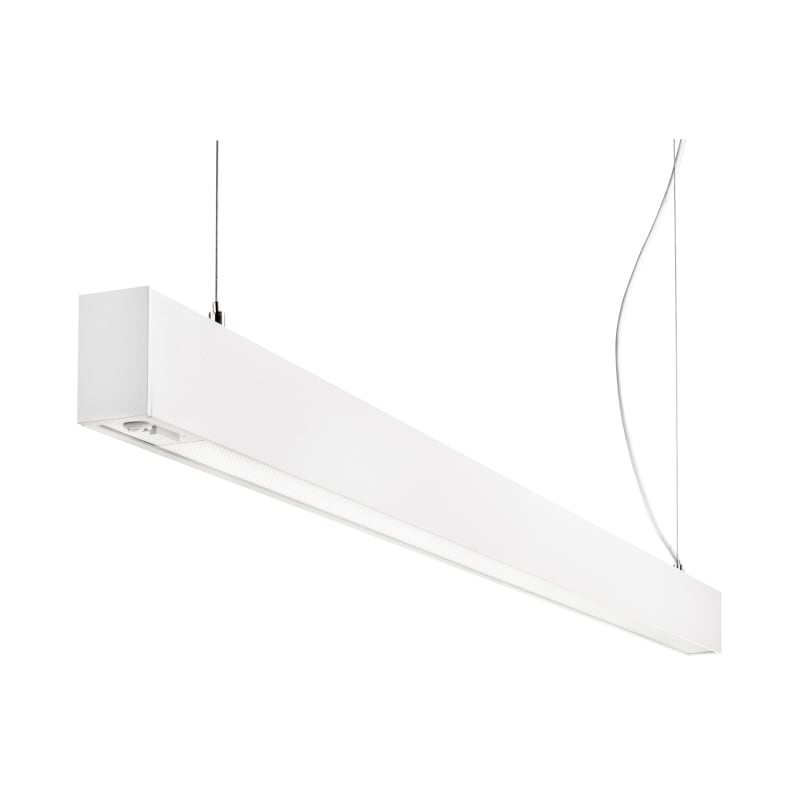

Inspire Connect 1200 White Prismatic 300

SG Armaturen 212931 INSPIRE CONNECT 1200 WHITE PRISMATIC 3000K RA>90, 29W, 3400lm, Ra>90, SDCM 3, L80/B20>100,000, IP20.

Manufacturer part number (MPN)

212931

EAN / GTIN

7021982129315

Sales unit

pcs

Package quantity

4 pcs

Efficacy

123 lm/W

Lumen

3580lm

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra>90

Lifetime

100,000 L80/B20>

Mounting

Suspended, Indoor

System wattage

29W

Voltage

220-240V

Frequency (Hz)

50/60Hz

Max. luminaires per circuit breaker

B10: 26, B16: 42, C10: 43, C16: 71

Leakage current (mA)

0.50

Type of light source

LED

Light source included

Yes

Luminous flux

3580lm

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 55/45%

Optic

Prism Optic

UGR

UGR<19

Photobiological safety

RG 0

Type

Connect

Luminaire class

Class I

Contains light source of energy class

C/C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium

Colour

White

Optics

Polycarbonat (PC)

Module

1200

Wire set

2x2m wire kit

Cable

Cable 3x0,75mm² 2,5m

Length (mm) L

1241

Width (mm) W

38

Height (mm) H

70

Weight (kg) gross/net

3.775 / 3.375

Packaging dimensions (mm)

1365 x 90 x 61

Operation by Bluetooth

Yes

Compatible with Casambi

No

With movement sensor

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

White

Material cover

Plastic, opal

Type of grid

None

Voltage type

AC

Nominal voltage

220–240 V

Nominal current

800 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming programmable

Yes

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

Yes

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

Yes

Dimming with push-button

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Direct-/indirect proportion separately controllable

No

Rated lifetime L70/B50 at 25 °C

50000 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

None

Suitable for lamp power

29 W

Max. system power

29 W

Colour of light

White

Colour rendering index CRI

90-100

Unified Glare Ratio (UGR)

19

Power factor

100

Constant light output (CLO)

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

38 mm

Height/depth

67 mm

Length

1241 mm

With suspension

Yes

Pendant length

2200 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

0.75 mm²

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Dimmable

Yes

With light sensor

Yes

With presence detector

Yes

Movement sensor/presence detector technology

Passive infrared

Luminaire efficacy

117 lm/W

Rated luminous flux according to IEC 62722-2- 1

3400 lm

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021982129315
• SAP 1200888931
• Code 84131626
