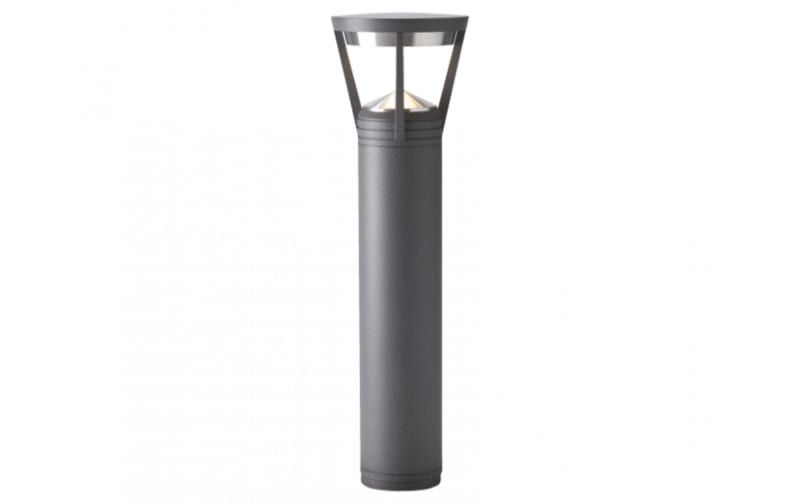

RAY Bollard II 900 Asymmetric 8W

SG Armaturen 8246094380 RAY BOLLARD II 900 ASYM. GREY 8W 500lm 3000K.

Manufacturer part number (MPN)

8246094380

EAN / GTIN

5703821177290

Sales unit

pcs

Power

8 W

Efficacy

82 lm/W

Lumen

490lm

IP Class

IP54

Colour temperature

3000K

Colour rendering (Ra)

Ra>70

Lifetime

100,000 L80/B10>

Mounting

Onto surfaces or ground anchor, Outdoor

System wattage

6W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 32, B16: 50, C10: 52, C16: 85

Type of light source

LED

Luminous flux

490lm

MacAdams factor

SDCM: 4

Light distribution

Asymmetric

Optic

Lens

Type

On/Off

Luminaire class

Class II

IK Class

IK10

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Sunda Hus

C-

Housing

Aluminium

Colour

Grey SIZE S/30

Optics

Acrylic (PMMA)

Height (mm) H

900

Diameter (mm) D

260

Weight (kg) gross/net

12.7 / 12.5

Packaging dimensions (mm)

975 x 275 x 300

Protection class according to IEC 61140

II

Width

260 mm

Conductor cross section

2.5 mm²

With base plate

Yes

Housing colour

Anthracite

Surface protection

Powder coating

Voltage type

AC

With movement sensor

No

Suitable for lamp power

6 W

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

80-89

With light sensor

No

Luminous intensity

580 cd

Number of poles

2

Length

900 mm

Height/depth

900 mm

Type of power supply

Mains power supply

Housing material

Aluminium

Lamp type

LED not exchangeable

Type of luminaire

Bollard luminaire

Light outlet

Direct

Impact strength

IK10

Nominal voltage

230 V

Degree of protection (IP)

IP54

With light source

Yes

Suitable for number of light sources

1

With control gear

No

Max. system power

6 W

Rated luminous flux according to IEC 62722-2-1

580 lm

Colour of light

White

Constant light output (CLO)

No

IFTTT support available

No

Type of wiring

Suitable for loop-through wiring

Light distributor

Reflector

Luminaire efficacy

82 lm/W

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Exchangeable control gear

No

Country of origin

Denmark

HS Code

9405.42

• EAN 5703821177290
• SAP 1200141301
• Code 82034597
