SG Armaturen
Hurdal 1500 31W/840 PIR
Part number113123EAN / GTIN7021981131234HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

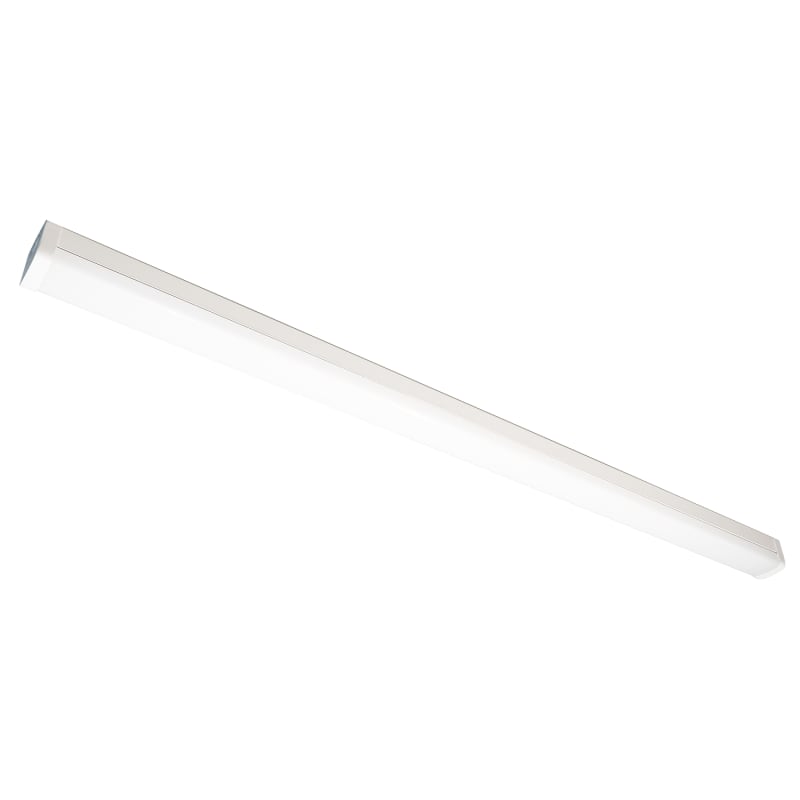

SG Armaturen 113123 HURDAL 1500 4000K PIR, 34W, 4640lm, Ra>80, SDCM3, L80/B20 100000, IK07, IP44.
Technical Specifications
- Manufacturer part number (MPN)
- 113123
- EAN / GTIN
- 7021981131234
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 31 W
- Efficacy
- 155 lm/W
- Adjustable luminous flux
- 3037lm - 4820lm
- Lumen
- 4820lm
- IP Class
- IP44
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 31W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 17, B16: 27, C10: 27, C16: 46
- Leakage current (mA)
- 0,7
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 4820lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<25
- Visible flicker (PstLM)
- <1
- Stroboscopic flicker (SVM)
- <0,4
- Photobiological safety
- RG 0
- Type
- PIR Sensor
- Luminaire class
- Class I
- IK Class
- IK07
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Optics
- UV-stabilized polycarbonate
- Module
- 1500
- Connection
- 4-pole screwless terminal block with 4x2,5mm² through wiring
- Length (mm) L
- 1500
- Width (mm) W
- 72
- Height (mm) H
- 76
- Weight (kg) gross/net
- 2.45 / 2
- Packaging dimensions (mm)
- 1540 x 116 x 108
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981131234
- SAP 1200747213
- Code 83885926
Product Documentation
Document preview: Hurdal 1500 31W/840 PIR (113123) — Specification sheet
