SG Armaturen

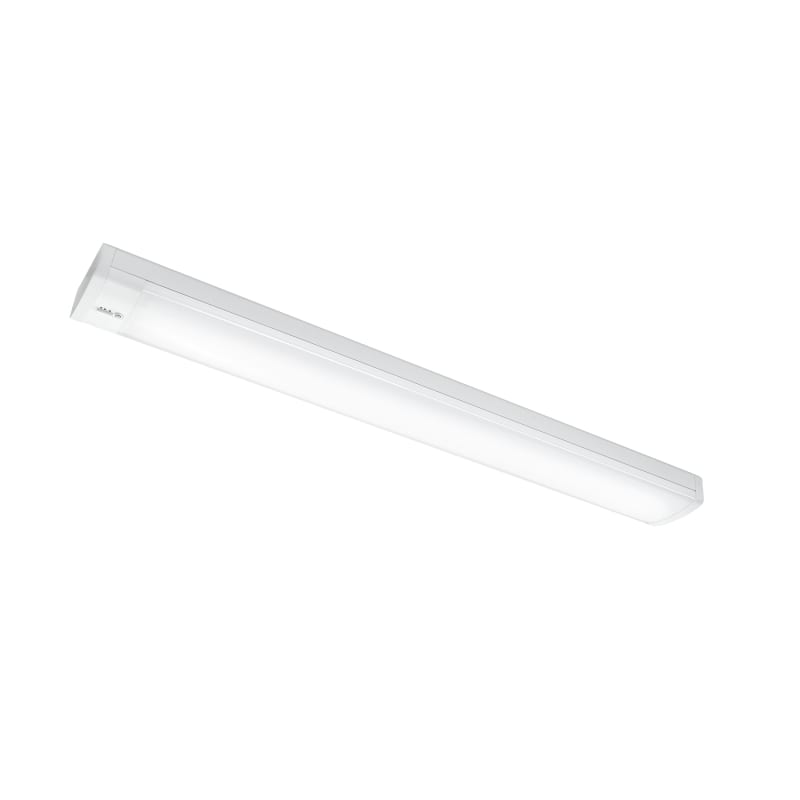

Hurdal MAXI Connect 1200 37W/840
Part number113145EAN / GTIN7021981131456HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 113145 HURDAL MAXI CONNECT 1200 4000K, 37W, 5870lm, Class In, IK07, IP44, SDCM 3, Ra>80, L80/B20, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 113145
- EAN / GTIN
- 7021981131456
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 37 W
- Efficacy
- 159 lm/W
- Lumen
- 5870lm
- IP Class
- IP44
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Indoor
- System wattage
- 37W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 24, C16: 40
- Type of light source
- LED
- Luminous flux
- 5870lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<25
- Visible flicker (PstLM)
- 0,00
- Stroboscopic flicker (SVM)
- 0,01
- Photobiological safety
- RG 0
- Type
- Connect
- Driver
- 1050mA
- Luminaire class
- Class I
- Contains light source of energy class
- C
- Housing
- Steel
- Optics
- UV-stabilized polycarbonate
- Module
- 1200
- Connection
- 3-pole screwless terminal block with 3x2,5mm² through wiring
- Length (mm) L
- 1220
- Width (mm) W
- 151
- Height (mm) H
- 75
- Weight (kg) gross/net
- 3.5 / 3
- Packaging dimensions (mm)
- 1243 x 155 x 88
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981131456
- SAP 1200912111
- Code 84183239
Product Documentation
Document preview: Hurdal MAXI Connect 1200 37W/840 (113145) — Specification sheet
More from SG Armaturen
SG Armaturen
ZIP TUBE Pendant MINI 555mm (320524)
SG Armaturen
Lineal 80 Corner D Black DALI
320932
SG Armaturen
Connect Driver KIT Wireless 700MA
820506
SG Armaturen
Sense Basic Connect Wireless (213003)
SG Armaturen
Place Wall Arm, Grey, IP54
641968
SG Armaturen

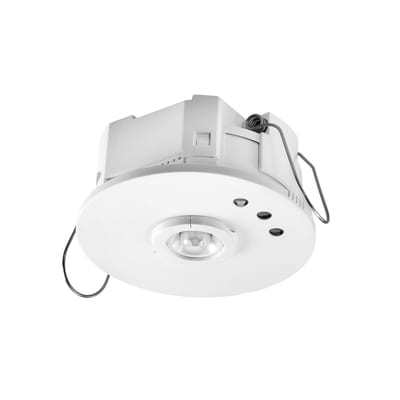

Connect Sensor 4M 230V
820589
SG Armaturen

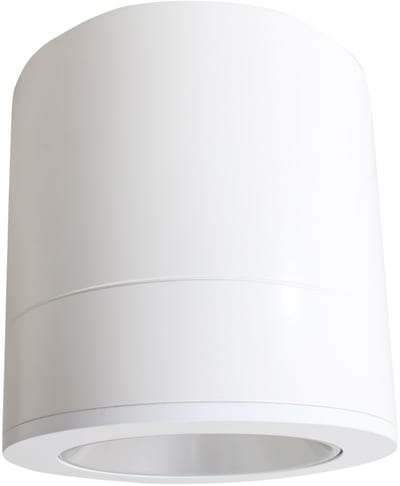

RAX 150 Surface 19W/830
8246081607
SG Armaturen

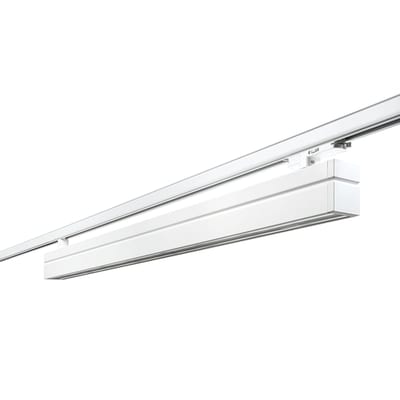

Sector PRO 3T White 70W/830 DALI
