SG Armaturen
Place Wall Arm, Grey, IP54
Part number641968EAN / GTIN7021986419689HS code9405.99
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

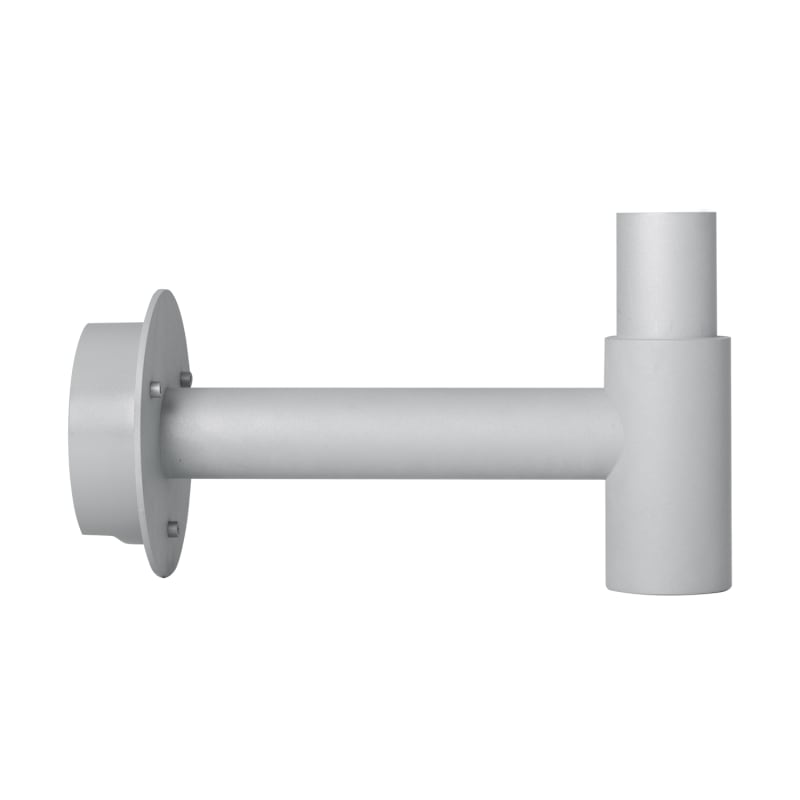

SG Armaturen 641968 Place wall arm, grey, IP54.
Technical Specifications
- Manufacturer part number (MPN)
- 641968
- EAN / GTIN
- 7021986419689
- Sales unit
- pcs
- Package quantity
- 4 pcs
- IP rating
- IP54
- Mounting method
- Wall bracket
- Protection class according to IEC 61140
- II
- Width
- 175 mm
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Length
- 350 mm
- Height/depth
- 150 mm
- Housing material
- Aluminium
- Material cover
- Plastic, opal
- Impact strength
- IK10
- With connection cable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP66
- With light source
- No
- With control gear
- No
- Adjustable optics
- No
- Suitable for spigot size
- 60 mm
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- Type of wiring
- Ending
- Rated ambient temperature according to IEC 62722-2-1
- 25 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Zigbee
- No
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Exchangeable control gear
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.99
Cross References
- EAN 7021986419689
- SAP 1201034910
- Code 84410878
Product Documentation
Document preview: Place Wall Arm, Grey, IP54 (641968) — Specification sheet
