SG Armaturen

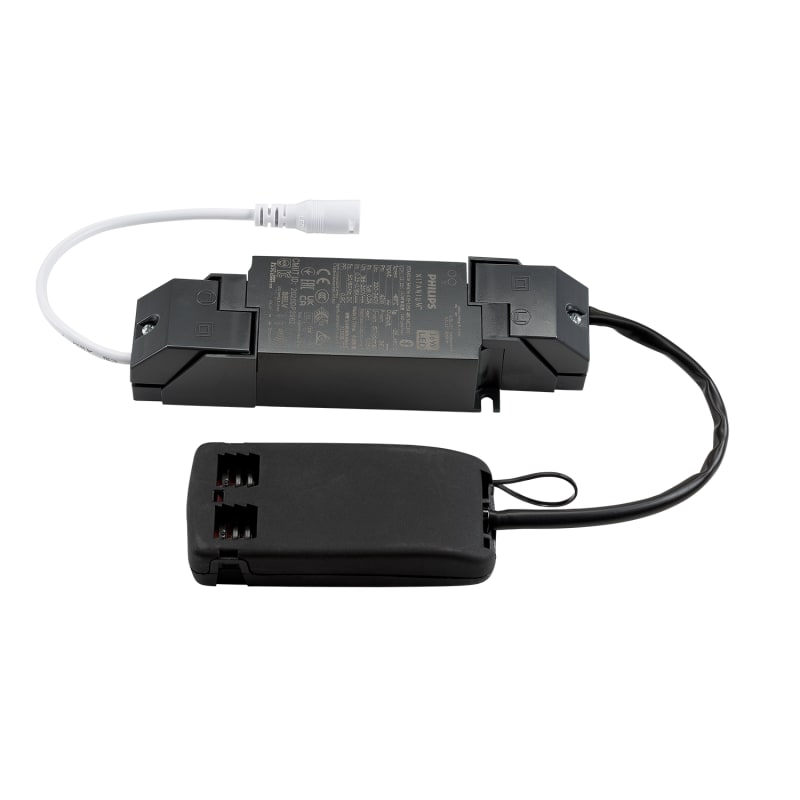

Connect Driver KIT Wireless 700MA
Part number820506EAN / GTIN7021988205068HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820506 CONNECT DRIVER KIT SLAVE 700MA.
Technical Specifications
- Manufacturer part number (MPN)
- 820506
- EAN / GTIN
- 7021988205068
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Wattage
- 26W
- IP Class
- IP20
- Lifetime
- 100,000
- Mounting
- Recessed, Indoor
- System wattage
- 26W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 22, B16: 35, C10: 36, C16: 60
- Type
- Connect Wireless
- Driver
- 700mA
- Luminaire class
- Class II
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Plastic
- Connection
- 3 pol Linect / screwless terminal block
- Length (mm) L
- 157
- Width (mm) W
- 45
- Height (mm) H
- 30
- Weight (kg) gross/net
- 0.24 / 0.191
- Packaging dimensions (mm)
- 310 x 100 x 36
- Operation by Bluetooth
- Yes
- Power consumption
- 0.5 W
- Device emplacement
- Indoor positioning
- Compatible with Casambi
- No
- Material
- Polycarbonate (PC)
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- Yes
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- Yes
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- Yes
- Dimming with push-button
- No
- Constant light output (CLO)
- No
- No dim function
- No
- Suitable for constant current
- Yes
- Suitable for constant voltage
- No
- Output voltage
- 24–48 V
- Output current
- 700 mA
- Suitable for DC-voltage (primary side)
- No
- Output power
- 6–36 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Length
- 157 mm
- Width
- 45 mm
- Height
- 30 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Short-circuit protected
- Yes
- Input voltage
- 220–240 V
- Frequency input voltage
- 50–60 Hz
- Overload protection
- Yes
- Overtemperature protection
- Yes
- PWM modulation
- No
- Dimming DALI-2
- No
- Dimming D4i
- Yes
- Emergency power supply system
- None
- Mains surge immunity (differential mode, L-N)
- 1 kV
- Driver lifetime
- 100000 h
- Independently operating
- Yes
- Efficiency
- 88 %
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7021988205068
- SAP 1200722966
- Code 83857128
Product Documentation
Document preview: Connect Driver KIT Wireless 700MA (820506) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense Basic Connect Wireless (213003)
SG Armaturen
Place Wall Arm, Grey, IP54
641968
SG Armaturen
Connect Sensor 4M 230V
820589
SG Armaturen
RAX 150 Surface 19W/830
8246081607
SG Armaturen
Sector PRO 3T White 70W/830 DALI
8246096391
SG Armaturen
Shopline 3T T-Joint Right-HAND White
312434
SG Armaturen
RAX SOFT 100 Rehabring White
212965
SG Armaturen
Jointim Master/TW/DALI Black Fronts
820830
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 820506?
- 820506 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 820506.
- What is the HS code for 820506?
- The customs tariff (HS) code for 820506 is 8504.31.
- Who manufactures 820506?
- 820506 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 820506?
- Yes — the 820506 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 820506?
- The minimum order quantity is 1.
- Is 820506 available?
- Yes — 820506 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
