SG Armaturen

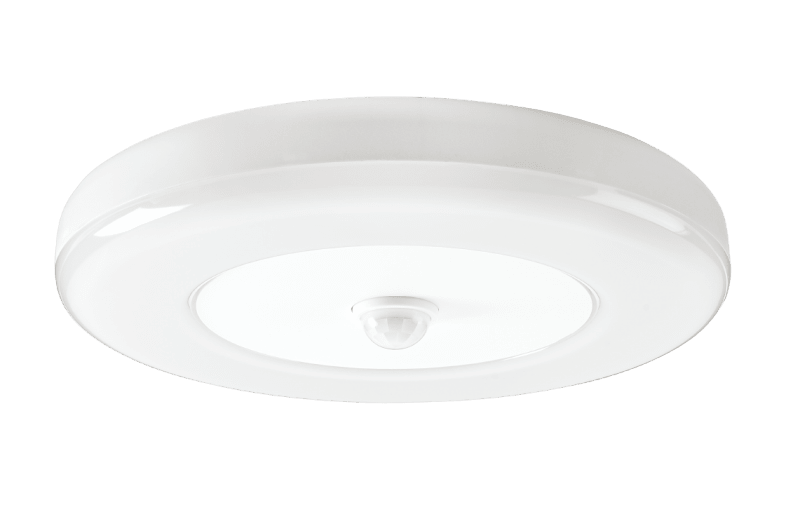

ETNE 10W/840 820LM PIR Sensor
Part number143095EAN / GTIN7021981430955HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 143095 ETNE 4000K PIR SENSOR 10W 820lm, CLASS II, SDCM 3, IP20, IK07, RA>80, L80/B10 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 143095
- EAN / GTIN
- 7021981430955
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 10 W
- Luminous flux
- 820 lm
- Efficacy
- 82 lm/W
- Lumen
- 820lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 10W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 70, B16: 112, C10: 86, C16: 138
- Type of light source
- LED
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 114°
- UGR
- UGR<25
- Visible flicker (PstLM)
- 0.47
- Stroboscopic flicker (SVM)
- 0.13
- Type
- PIR Sensor
- Luminaire class
- Class II
- IK Class
- IK07
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- UV-stabilized polycarbonate
- Colour
- White
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 59
- Diameter (mm) D
- 220
- Weight (kg) gross/net
- 0.5 / 0.379
- Packaging dimensions (mm)
- 226 x 226 x 68
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021981430955
- SAP 1200657130
- Code 83090946
Product Documentation
Document preview: ETNE 10W/840 820LM PIR Sensor (143095) — Specification sheet
