SG Armaturen

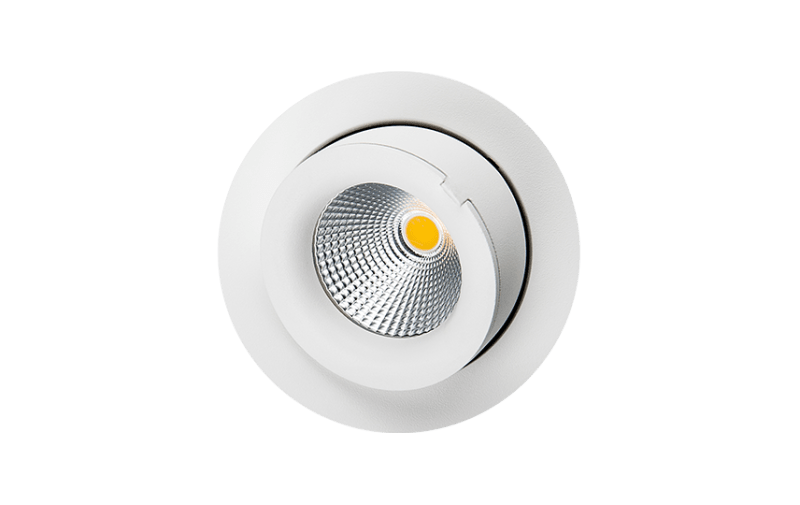

Junistar EXCL. White 9W/930
Part number903301EAN / GTIN7021989033011HS code8543.70
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 903301 Low-profile downlight. With a recessed lamp for reduced glare.
Technical Specifications
- Manufacturer part number (MPN)
- 903301
- EAN / GTIN
- 7021989033011
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 9 W
- Efficacy
- 69 lm/W
- Lumen
- 760lm
- Wattage
- 11W
- IP Class
- IP44/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 11W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 760lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<25
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Length (mm) L
- 121
- Width (mm) W
- 94
- Height (mm) H
- 55
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 53
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.49 / 0.38
- Packaging dimensions (mm)
- 130 x 115 x 95
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989033011
- SAP 1000801074
- Code 81460087
Product Documentation
Document preview: Junistar EXCL. White 9W/930 (903301) — Specification sheet
