SG Armaturen

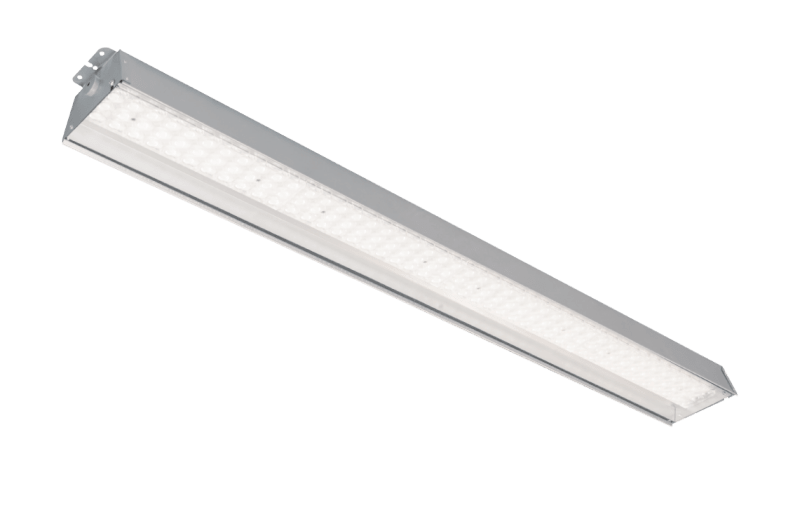

Arena ECO 1200 76W/840 WIDE
Part number607010EAN / GTIN7021986070101HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 607010 ARENA ECO 1200 WIDE 10960lm 4000K, 76W, SDCM3, Ra>80, L80/B20 100000, IP23, KL1.
Technical Specifications
- Manufacturer part number (MPN)
- 607010
- EAN / GTIN
- 7021986070101
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 76 W
- Efficacy
- 144 lm/W
- Adjustable luminous flux
- 6247lm - 10960lm
- Lumen
- 10960lm
- IP Class
- IP23
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 76W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 18, B16: 30, C10: 31, C16: 51
- Leakage current (mA)
- 0.22
- Type of light source
- LED
- Luminous flux
- 10960lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Beam angle
- 90°
- UGR
- UGR<25
- Photobiological safety
- RG 1
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK10
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Optics
- Acrylic (PMMA)
- Module
- 1200
- Connection
- 5-pole screwless terminal block with 5x2,5mm² through wiring
- Length (mm) L
- 1184
- Width (mm) W
- 134
- Height (mm) H
- 72
- Weight (kg) gross/net
- 3.6 / 3.15
- Packaging dimensions (mm)
- 1192 x 76 x 143
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986070101
- SAP 1200643823
- Code 83072602
Product Documentation
Document preview: Arena ECO 1200 76W/840 WIDE (607010) — Specification sheet
