SG Armaturen

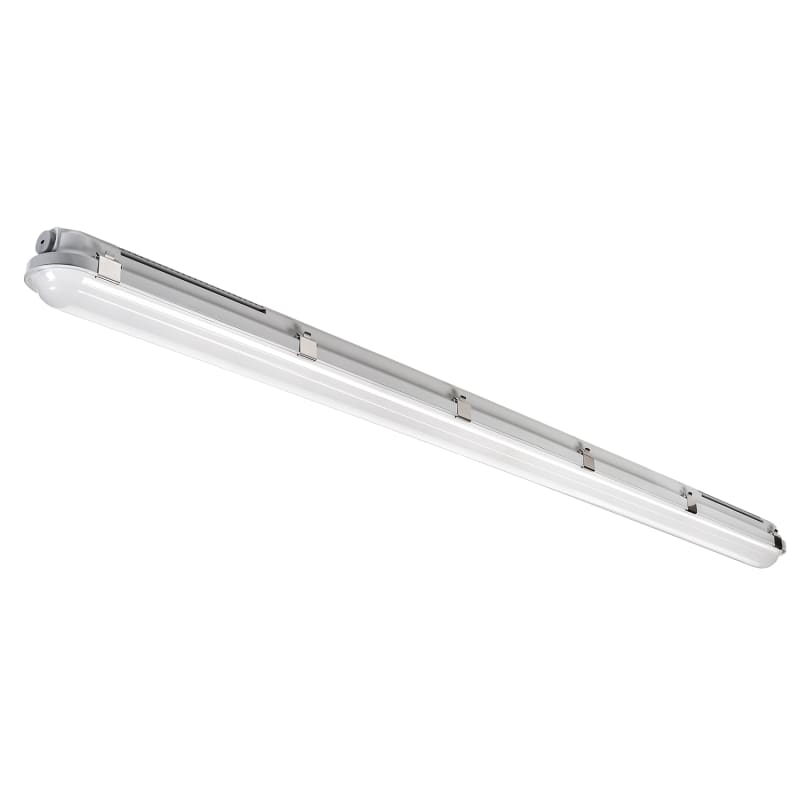

Tysnes 66 Connect Wireless 1500 32W/840
Part number120056EAN / GTIN7021981200565HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120056 TYSNES 66 CONNECT WIRELESS 1500 4000K, 40, 5560lm, Ra>80, SDCM3, L80/B20 100000, IK10, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- 120056
- EAN / GTIN
- 7021981200565
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 32 W
- Efficacy
- 174 lm/W
- Lumen
- 5560lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 32W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 22, B16: 35, C10: 36, C16: 60
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 5560lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 121°
- Type
- Connect Wireless
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Food Safety approved (IFS and HACCP)
- Yes
- Housing
- UV-stabilized polycarbonate
- Colour
- Grey
- Optics
- UV-stabilized polycarbonate
- Module
- 1500
- Connection
- 3-pole screwless terminal block with 3x2,5mm² through wiring
- Length (mm) L
- 1500
- Width (mm) W
- 85
- Height (mm) H
- 80
- Weight (kg) gross/net
- 1.98 / 1.78
- Packaging dimensions (mm)
- 1525 x 85 x 90
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200565
- SAP 1200747215
- Code 83885935
Product Documentation
Document preview: Tysnes 66 Connect Wireless 1500 32W/840 (120056) — Specification sheet
