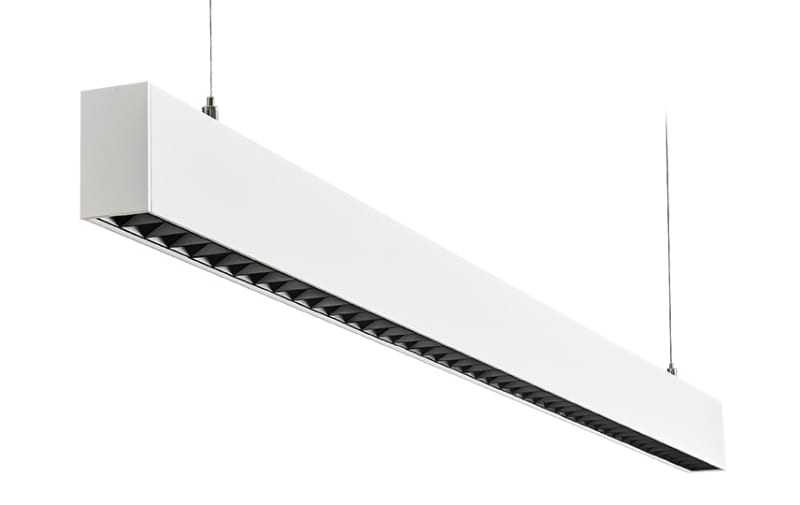

Inspire 1200 White 34W/830 DALI

SG Armaturen 212081 INSPIRE WHITE 3000K DALI.

Manufacturer part number (MPN)

212081

EAN / GTIN

7021982120817

Sales unit

pcs

Package quantity

4 pcs

Power

34 W

Efficacy

122 lm/W

Lumen

4140lm

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L80/B20>

Mounting

Suspended, Indoor

System wattage

34W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 8, B16: 13, C10: 12, C16: 20

Leakage current (mA)

0.29

Type of light source

LED

Luminous flux

4140lm

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 50/50%

Optic

Cubic Optic Black

UGR

UGR<10

Photobiological safety

RG 1

Type

DALI-2 / Push Dim

Luminaire class

Class I

Contains light source of energy class

D

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium

Colour

White

Optics

Polycarbonat (PC)

Wire set

2x2m wire kit

Cable

Cable 5x0,75mm² 2,5m

Length (mm) L

1241

Width (mm) W

38

Height (mm) H

67

Weight (kg) gross/net

3.1 / 2.7

Packaging dimensions (mm)

1365 x 90 x 61

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

White

Material cover

Plastic, transparent

Type of grid

None

Voltage type

AC

Type of control gear

LED operating device current-controlled

Dimming GPRS

No

Dimming LineSwitch

No

Dimming Its Wave Reduction

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Rated lifetime L70/B50 at 25 °C

50000 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Emergency power supply integrated

No

Filament test according to IEC 60695-2-11

None

Max. system power

34 W

Rated luminous flux according to IEC 62722-2-1

4140 lm

Colour of light

White

Luminaire efficacy

122 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

9.2

Power factor

100

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

38 mm

Height/depth

67 mm

Length

1241 mm

Type of wiring

Ending

Number of poles

1

Conductor cross section

0.75 mm²

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021982120817
• SAP 1200258004
• Code 82232104
