SG Armaturen

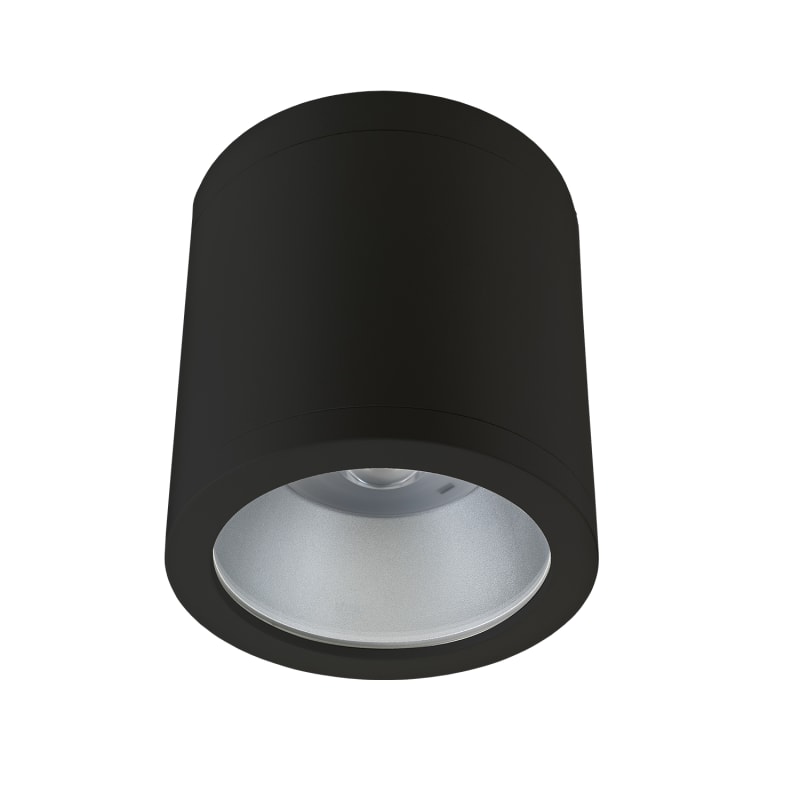

RAX SOFT Surface 150 Black 34W/830 IP65
Part number212760EAN / GTIN7021982127601HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212760 RAX SOFT SURFACE IP65 150 BLACK 4000 3000K, 34W, 3490lm, Ra<80, SDCM 2, IP65, KL II SELV.
Technical Specifications
- Manufacturer part number (MPN)
- 212760
- EAN / GTIN
- 7021982127601
- Sales unit
- pcs
- Package quantity
- 4 pcs
- IP rating
- IP65
- Power
- 34 W
- Efficacy
- 104 lm/W
- Lumen
- 3550lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 34W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 17, B16: 27, C10: 28, C16: 45
- Type of light source
- LED
- Luminous flux
- 3550lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 68°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0.02
- Stroboscopic flicker (SVM)
- 0.01
- Photobiological safety
- RG 1
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK06
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black/Satin mat
- Optics
- Glass
- Connection
- 5 pol Screwless terminal block
- Height (mm) H
- 196
- Diameter (mm) D
- 175
- Weight (kg) gross/net
- 3.03 / 2.78
- Packaging dimensions (mm)
- 183 x 183 x 220
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982127601
- SAP 1200747194
- Code 83886077
Product Documentation
Document preview: RAX SOFT Surface 150 Black 34W/830 IP65 (212760) — Specification sheet
More from SG Armaturen
SG Armaturen
TUBE MINI Decorative Ring OPAL 20mm
300757
SG Armaturen

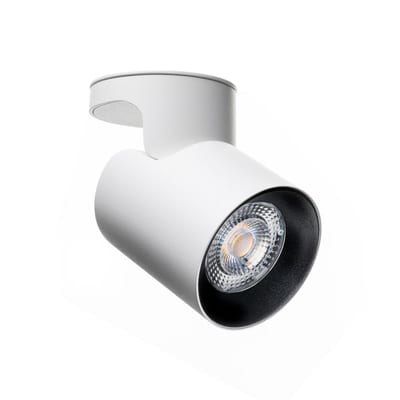

Aneto MINI R White 3000K
320981
SG Armaturen

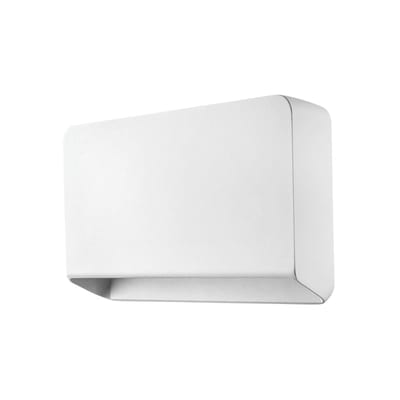

Arlon SQ White 10W/827
653606
SG Armaturen

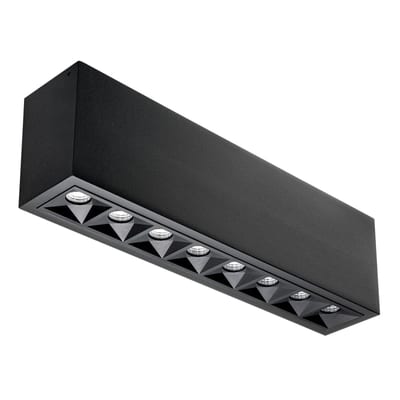

Inspire S 300 Black 15W/930
320830
SG Armaturen

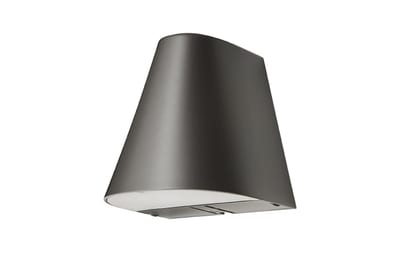

Spike Graphite 11W+6W/830
623913
SG Armaturen

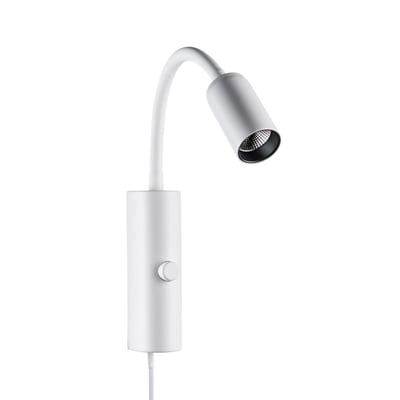

TUBE WALL White 3000K DIM
320911
SG Armaturen

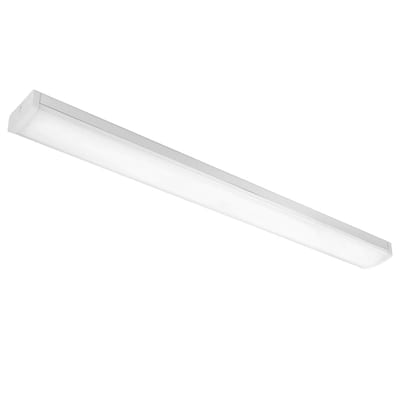

Hurdal MAXI 1500 38W/840
113134
SG Armaturen

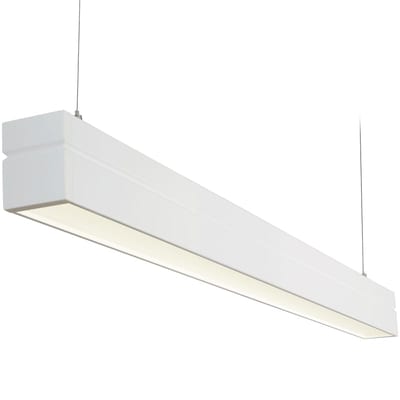

Facet D/In White 23W/830
