SG Armaturen

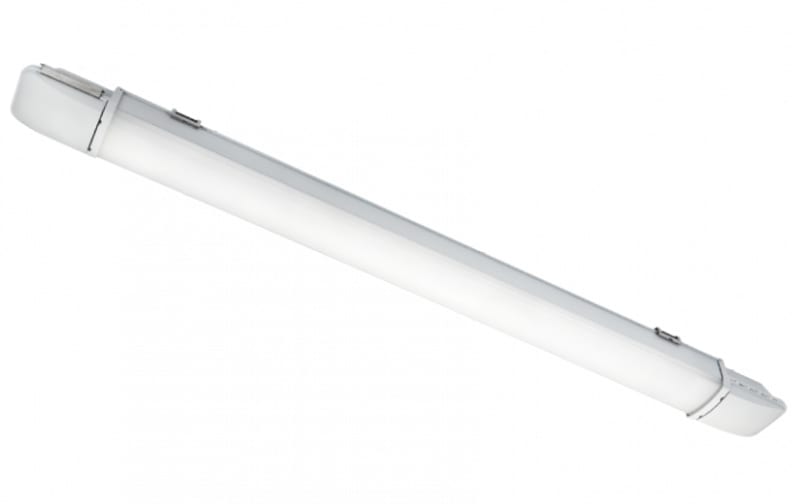

AREA66 36W/840 IP66 IK10 DALI
Part number120003EAN / GTIN7021981200039HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120003 L80/B50> 100 000 hours, 4390lm, 119 lm/W, SDCM3, IP66, IK10, L:1174mm.
Technical Specifications
- Manufacturer part number (MPN)
- 120003 EAN / GTIN: 7021981200039 Sales unit: pcs Package quantity: 6 pcs IP rating: IP66 Power: 36 W Efficacy: 125 lm/W Lumen: 4500lm Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B10> Mounting: Surface, Indoor System wattage: 36W Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 24, C16: 38 Leakage current (mA): 0.30 Type of light source: LED Luminous flux: 4500lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Opal Beam angle: 100° UGR: UGR<28 Type: DALI-2 Luminaire class: Class I IK Class: IK10 Contains light source of energy class: D Breeam: Fulfils Hea 01 for flicker free lighting Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1174 Width (mm) W: 92 Height (mm) H: 70 Weight (kg) gross/net: 2.832 / 2.36 Packaging dimensions (mm): 1230 x 110 x 80 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200039
- SAP 1200071075
- Code 81919100
Product Documentation
Document preview: AREA66 36W/840 IP66 IK10 DALI (120003) — Specification sheet
More from SG Armaturen
SG Armaturen
Inspire R 600 White 23W/830
320904
SG Armaturen
Arlon Round Pole Bracket, Black
653616
SG Armaturen
Hurdal MAXI Connect 1200 3000K
113143
SG Armaturen
RAX SOFT Surface 150 Black 34W/830 IP65
212760
SG Armaturen
TUBE MINI Decorative Ring OPAL 20mm
300757
SG Armaturen
Aneto MINI R White 3000K
320981
SG Armaturen
Arlon SQ White 10W/827
653606
SG Armaturen
Inspire S 300 Black 15W/930
320830
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 120003?
- 120003 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 120003.
- What is the HS code for 120003?
- The customs tariff (HS) code for 120003 is 9405.11.
- Who manufactures 120003?
- 120003 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 120003?
- Yes — the 120003 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 120003?
- The minimum order quantity is 1.
- Is 120003 available?
- Yes — 120003 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
