SG Armaturen

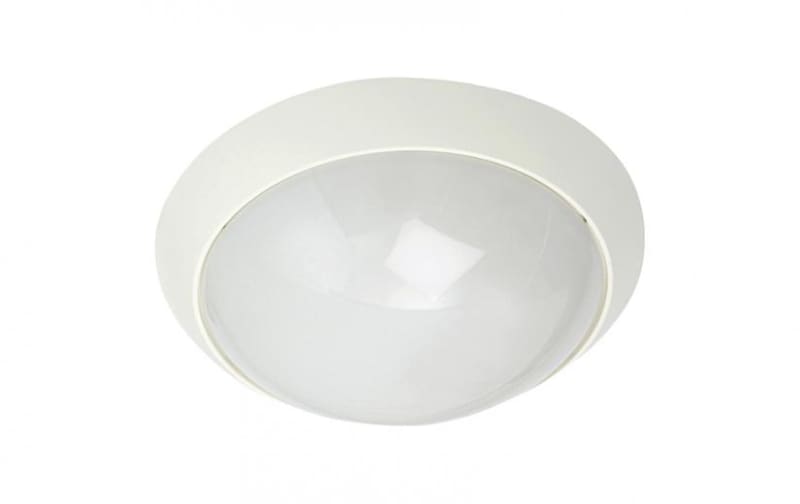

Energy-saving MIDI White 18W/830
Part number143070EAN / GTIN7021981430702HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 143070 ENERGY-SAVING MIDI 2000 WHITE 830 18W, 2030lm, RA80, L70/B10, SDCM 3, A++, Class II, IP44, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 143070
- EAN / GTIN
- 7021981430702
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 18 W
- Efficacy
- 127 lm/W
- Lumen
- 2030lm
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B10>
- Mounting
- Surface, Indoor
- System wattage
- 16W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 2030lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- UGR
- UGR<25
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 98
- Diameter (mm) D
- 350
- Weight (kg) gross/net
- 2.072 / 1.872
- Packaging dimensions (mm)
- 360 x 360 x 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981430702
- SAP 1200342934
- Code 82352999
Product Documentation
Document preview: Energy-saving MIDI White 18W/830 (143070) — Specification sheet
