SG Armaturen

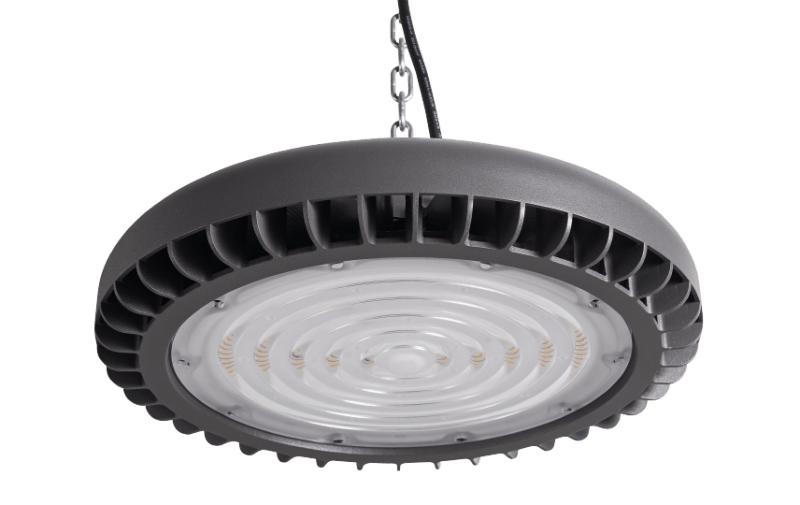

Tovdal 27000LM 197W/840 90°
Part number607003EAN / GTIN7021986070033HS code9405.11
Lighting & Electrical Accessories
High-Bay Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 607003 L80/B10>100 000 hours, 26550lm, 135 lm/W, SDCM3, IP65, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 607003 EAN / GTIN: 7021986070033 Sales unit: pcs Package quantity: 2 pcs Power: 197 W Luminous flux: 27000 lm Efficacy: 160 lm/W Lumen: 27050lm IP Class: IP65 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B10> Mounting: Suspended, Indoor System wattage: 169W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 3, B16: 5, C10: 5, C16: 8 Type of light source: LED MacAdams factor: SDCM: 3 minimum ambient temperature: -40°C Maximum ambient temperature: 40°C Lifetime at max ambient temperature: L80/B20>50,000 Light distribution: Direct Optic: Lens Beam angle: 86° Type: On/Off Luminaire class: Class I IK Class: IK10 Surge protection: Integrated (min. 6 kV) Contains light source of energy class: E Breeam: Fulfils Hea 01 for flicker free lighting Housing: Aluminium Colour: Graphite Optics: UV-stabilized polycarbonate Cable: Cable 3x1mm² 0,3m + 1,5m, H07RN-F Connection: Quick connector Height (mm) H: 132 Diameter (mm) D: 350 Weight (kg) gross/net: 5.674 / 5.2 Packaging dimensions (mm): 375 x 360 x 100 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986070033
- SAP 1200457306
- Code 82528447
Product Documentation
Document preview: Tovdal 27000LM 197W/840 90° (607003) — Specification sheet
