SG Armaturen

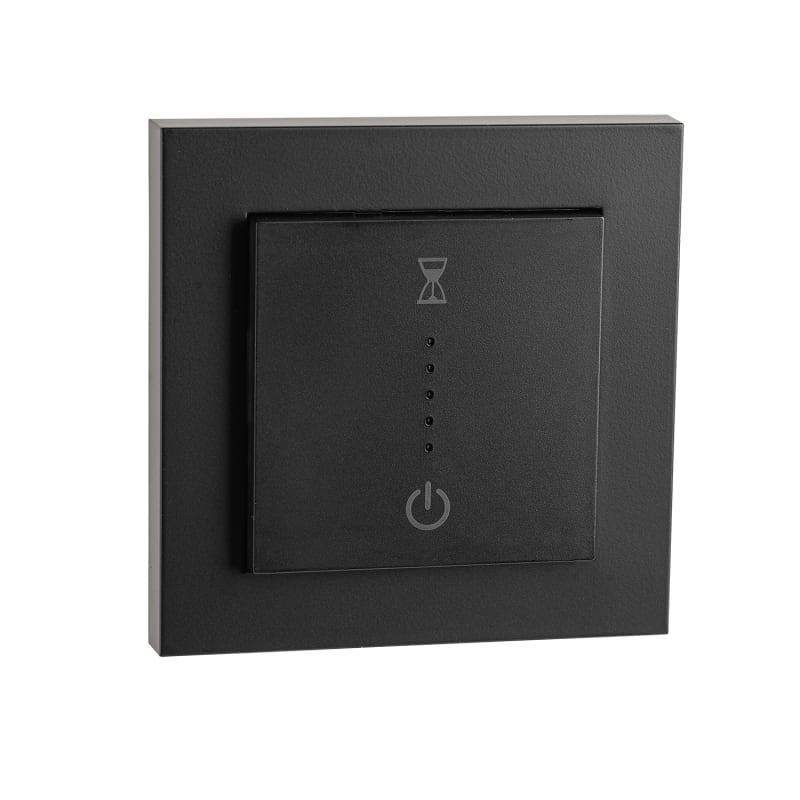

Time Switch Black (820501)
Part number820501EAN / GTIN7021988205013HS code8536.50
HVAC & Refrigeration
Thermostats & Controls
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820501 Time Switch 13A which is used for light, coffee maker, bathroom fan etc.
Technical Specifications
- Manufacturer part number (MPN)
- 820501
- EAN / GTIN
- 7021988205013
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Wattage
- 3000VA
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Luminaire class
- Class II
- Housing
- Polycarbonat (PC)
- Colour
- Black (RAL 9004)
- Halogen free
- Yes
- Connection
- 1-pole relay
- Length (mm) L
- 84
- Width (mm) W
- 84
- Height (mm) H
- 43
- Weight (kg) gross/net
- 0.15 / 0.11
- Packaging dimensions (mm)
- 90 x 90 x 50
- Operation by Bluetooth
- No
- Timer function
- Yes
- Wi-Fi-compatible
- No
- Assembly arrangement
- Basic element with complete housing
- Number of modules (module system)
- 1
- Number of contacts as normally open contact
- 1
- Model
- Electronic
- Time setting
- 5–480 min
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- RAL-number (similar)
- 9004
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Shortest switching interval
- 5 min
- Autonomy
- 8 h
- Random generator
- No
- Nominal voltage
- 230 V
- Astro program
- No
- Substation input
- No
- Compatible with Apple HomeKit
- No
- Rated current
- 13 A
- Compatible with Google Assistant
- No
- With brightness sensor connection
- No
- Compatible with Amazon Alexa
- No
- Max. power
- 3000 W
- Built-in depth
- 29 mm
- IFTTT support available
- No
- Min. depth of built-in installation box
- 29 mm
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 43 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988205013
- SAP 1200697466
- Code 83565374
Product Documentation
Document preview: Time Switch Black (820501) — Specification sheet
More from SG Armaturen
SG Armaturen

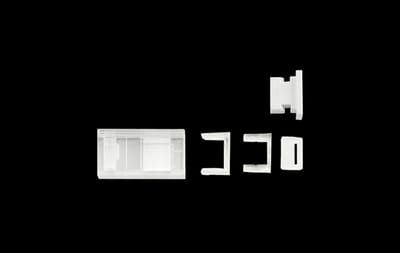

Stripline 230V OUT End Connection
391492
SG Armaturen

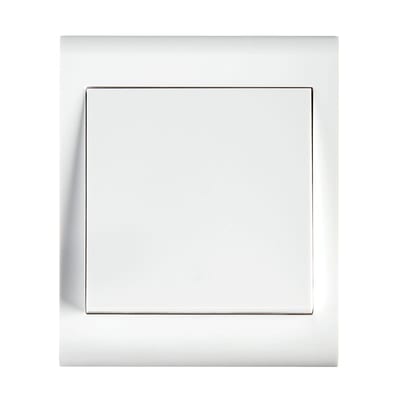

Switch PV Limit Switch White
