SG Armaturen

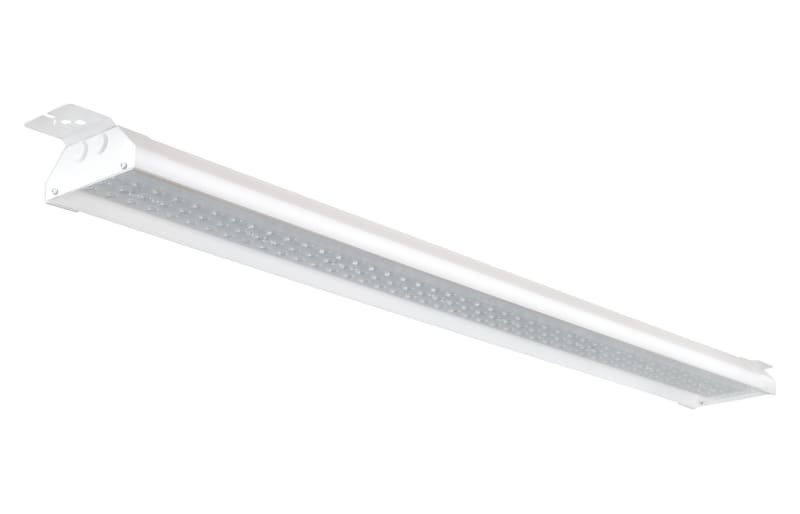

Arena 1200 156W/840 (8246093860)
Part number8246093860EAN / GTIN5703821176347HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246093860 Arena 1200 176W 4000K Ra>80.
Technical Specifications
- Manufacturer part number (MPN)
- 8246093860 EAN / GTIN: 5703821176347 Sales unit: pcs Power: 156 W Replaces: 8246093886 Efficacy: 168 lm/W Lumen: 23580lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 70,000 L90/B10> Mounting: Suspended or surface, Indoor System wattage: 140W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 9, B16: 14, C10: 11, C16: 17 Leakage current (mA): 0,44 Type of light source: LED Light source included: Yes Luminous flux: 23580lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Medium Beam angle: Medium UGR: UGR<19 Visible flicker (PstLM): 0,05 Stroboscopic flicker (SVM): 0 Type: On/Off Luminaire class: Class I IK Class: IK08 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1256 Width (mm) W: 295 Height (mm) H: 57 Weight (kg) gross/net: 8.2 / 8 Packaging dimensions (mm): 1285 x 300 x 65 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821176347
- SAP 1200056001
- Code 81905068
Product Documentation
Document preview: Arena 1200 156W/840 (8246093860) — Specification sheet
More from SG Armaturen
SG Armaturen
Bassi Graphite 10W/830 IP65 Twilight
623188
SG Armaturen
Sense 255 TW DALI DT8
212302
SG Armaturen
DISC 290 White 17W/840
606036
SG Armaturen
DISC 285X285 White TW Jointim
606062
SG Armaturen
Herning Bollard 900 Ø60 GREY
623976
SG Armaturen
Spike Graphite 11W/830 2XPLUG Twilight
623921
SG Armaturen
Lineal Recessed 840 White 13W/830 DALI
8246095648
SG Armaturen
Sense 320 19W TW Jointim
212303
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
