SG Armaturen

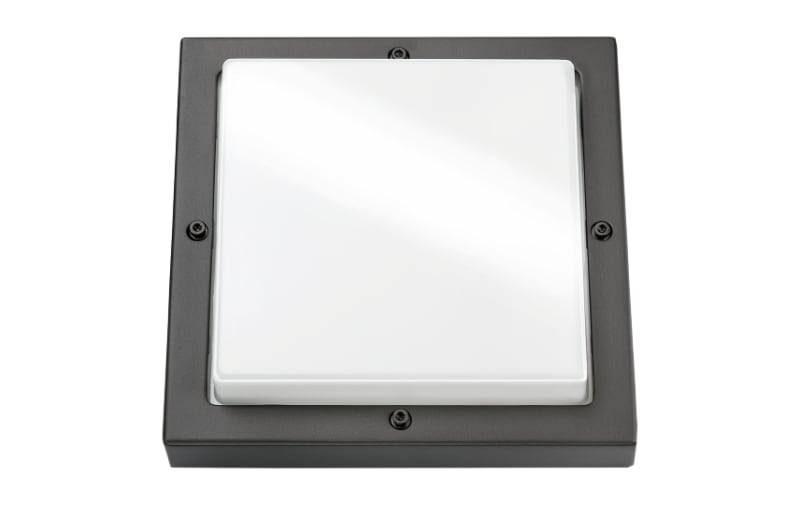

Bassi Graphite 10W/830 IP65 Twilight
Part number623188EAN / GTIN7021986231885HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623188 3000K IP65.
Technical Specifications
- Manufacturer part number (MPN)
- 623188
- EAN / GTIN
- 7021986231885
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 10 W
- Efficacy
- 69 lm/W
- Lumen
- 690lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 10W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 690lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- Photobiological safety
- RG 0
- Type
- Twilight
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 240
- Width (mm) W
- 240
- Height (mm) H
- 80
- Weight (kg) gross/net
- 2.136 / 1.9
- Packaging dimensions (mm)
- 247 x 247 x 91
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986231885
- SAP 1000704764
- Code 8320491
Product Documentation
Document preview: Bassi Graphite 10W/830 IP65 Twilight (623188) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense 255 TW DALI DT8
212302
SG Armaturen
DISC 290 White 17W/840
606036
SG Armaturen

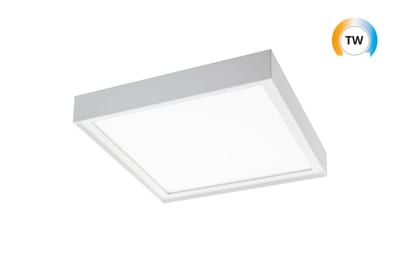

DISC 285X285 White TW Jointim
606062
SG Armaturen

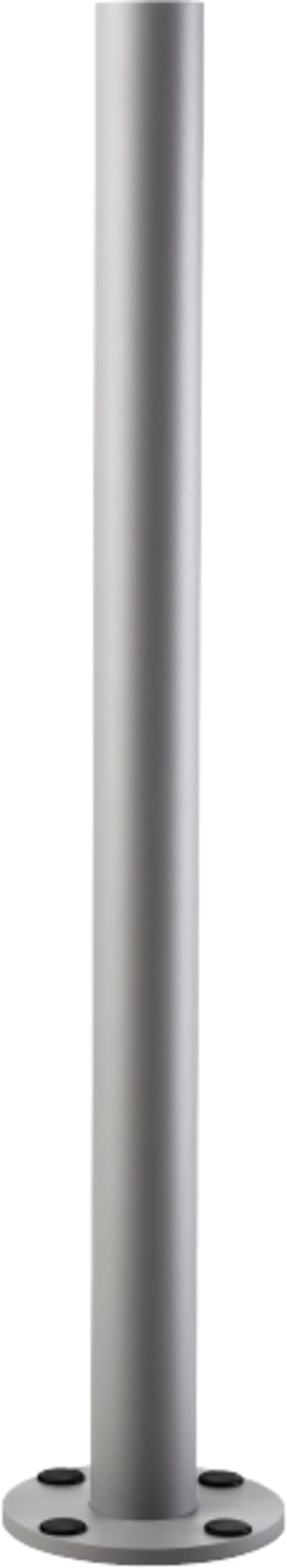

Herning Bollard 900 Ø60 GREY
623976
SG Armaturen

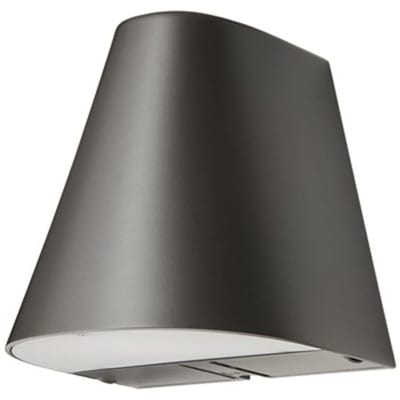

Spike Graphite 11W/830 2XPLUG Twilight
623921
SG Armaturen

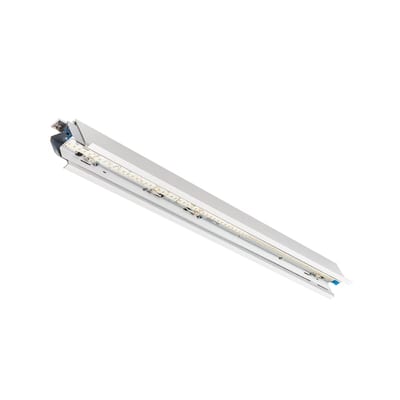

Lineal Recessed 840 White 13W/830 DALI
8246095648
SG Armaturen

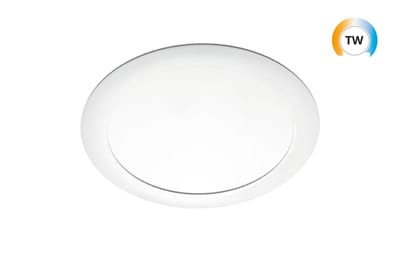

Sense 320 19W TW Jointim
