SG Armaturen

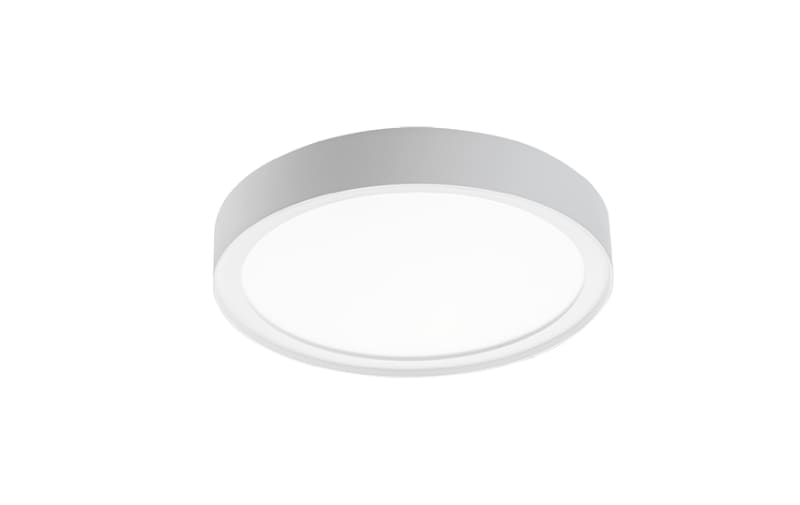

DISC 290 White 17W/840
Part number606036EAN / GTIN7021986060362HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606036 DISC 290 WHITE 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 606036
- EAN / GTIN
- 7021986060362
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 17 W
- Efficacy
- 128 lm/W
- Lumen
- 2180lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 2180lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 288
- Weight (kg) gross/net
- 2.005 / 1.846
- Packaging dimensions (mm)
- 308 x 303 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060362
- SAP 1200243998
- Code 82204928
Product Documentation
Document preview: DISC 290 White 17W/840 (606036) — Specification sheet
More from SG Armaturen
SG Armaturen
DISC 285X285 White TW Jointim
606062
SG Armaturen
Herning Bollard 900 Ø60 GREY
623976
SG Armaturen
Spike Graphite 11W/830 2XPLUG Twilight
623921
SG Armaturen
Lineal Recessed 840 White 13W/830 DALI
8246095648
SG Armaturen
Sense 320 19W TW Jointim
212303
SG Armaturen
Neostrip CUT KIT IP54 2X END CAP
391472
SG Armaturen

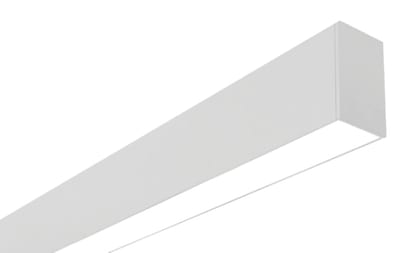

Lineal SURF 840 14W/830 White DALI
8246095855
SG Armaturen

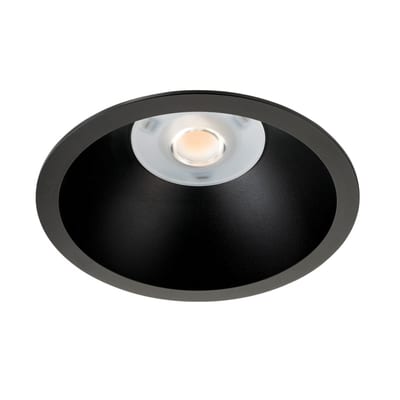

RAX SOFT 200 Black 2200 22W/830 DALI
