SG Armaturen

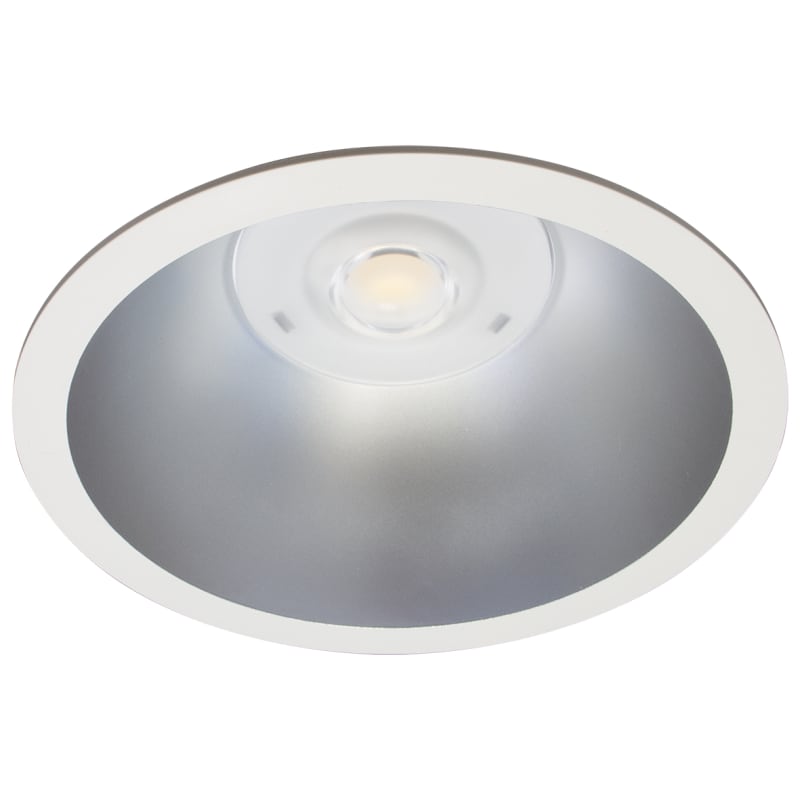

RAX SOFT 200 Satin 1600 13W/830
Part number212514EAN / GTIN7021982125140HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212514 RAX SOFT 200 SATIN 1600 3000K 13W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212514
- EAN / GTIN
- 7021982125140
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 13 W
- Replaces
- 8246093239
- Efficacy
- 133 lm/W
- Lumen
- 1460lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 11W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1460lm
- Emergency lumen
- 380lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- UGR
- UGR<19 up to 450 mA/2000 lm
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.2 / 1
- Packaging dimensions (mm)
- 240 x 240 x 102
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125140
- SAP 1200566396
- Code 82925847
Product Documentation
Document preview: RAX SOFT 200 Satin 1600 13W/830 (212514) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline Profile Surface-Mounted SOFT 1.8M Black
391478
SG Armaturen
SG Armaturen LED Dimmer 350/400/Smart Rotary Switch White Frame
820424
SG Armaturen
Frosta 330 White 17W/830
211731
SG Armaturen
Tysnes 66 PRO 1500 55W/840 DALI
120053
SG Armaturen
Sense Surface Wire Hanger
212234
SG Armaturen
Hurdal 600 12W/830 (113100)
SG Armaturen
Arlon SQ Black 10W/830
653605
SG Armaturen

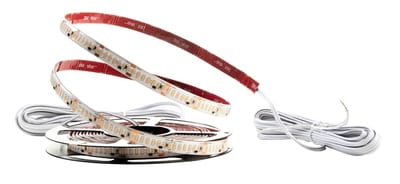

Stripline 3,6M 9W/830 2X5M Cable
