SG Armaturen

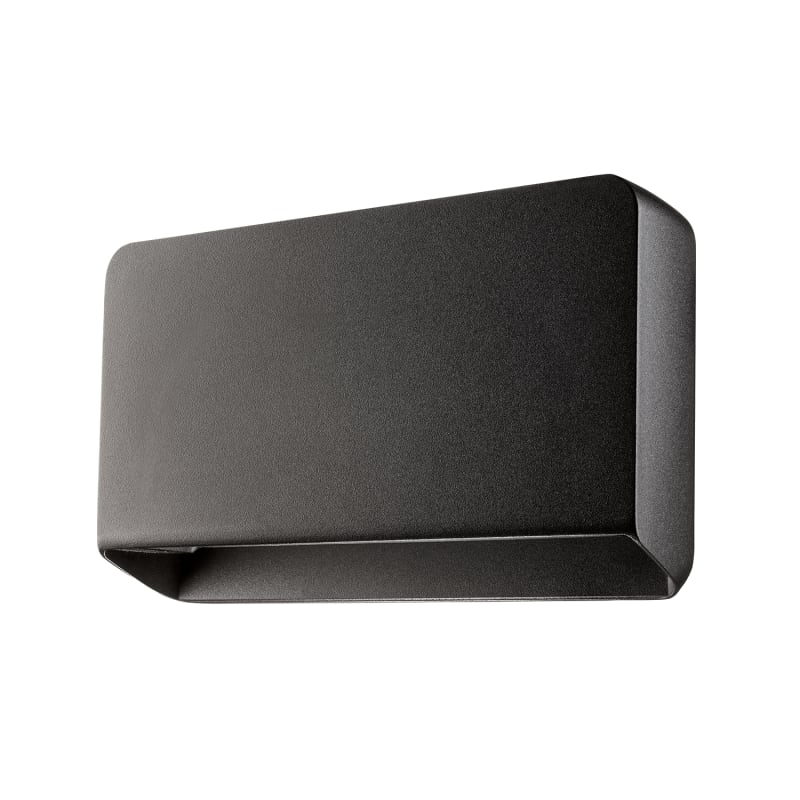

Arlon SQ Black 10W/830
Part number653605EAN / GTIN7021986536058HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 653605 ARLON BLACK 3000K, 10W, 980lm, Ra>80, SDCM:3. Class II, IP65, 100.000, L80/B20>.
Technical Specifications
- Manufacturer part number (MPN)
- 653605
- EAN / GTIN
- 7021986536058
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 10 W
- Efficacy
- 98 lm/W
- Lumen
- 980lm
- IP Class
- IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Wall, Outdoor
- System wattage
- 10W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 980lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Diffuser
- Visible flicker (PstLM)
- 0.08
- Stroboscopic flicker (SVM)
- 0.75
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Driver
- 350mA
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Polycarbonat (PC)
- Connection
- Screwless terminal block
- Length (mm) L
- 270
- Width (mm) W
- 150
- Height (mm) H
- 47
- Weight (kg) gross/net
- 1.5 / 1.35
- Packaging dimensions (mm)
- 275 x 155 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986536058
- SAP 1200695501
- Code 83556988
Product Documentation
Document preview: Arlon SQ Black 10W/830 (653605) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline 3,6M 9W/830 2X5M Cable
391404
SG Armaturen
Shopline 3T 3M RAIL White
312421
SG Armaturen
Junistar BIO White 500LM 5W/927
905250
SG Armaturen
Fagernes Black 9W/827
630061
SG Armaturen

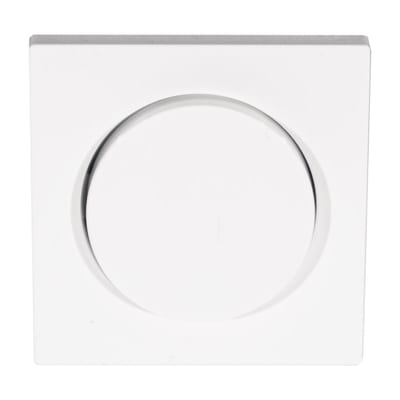

Jointim 400 Centre Washer FOR Schneider
820353
SG Armaturen

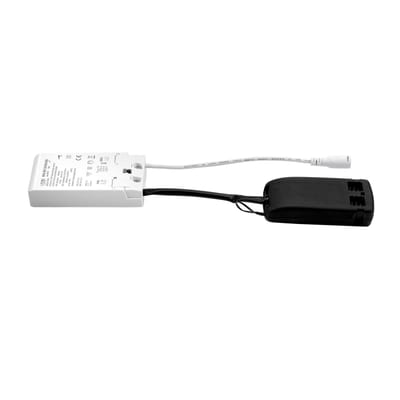

Sense Driver 700MA/3000LM Faseav Linect
820491
SG Armaturen

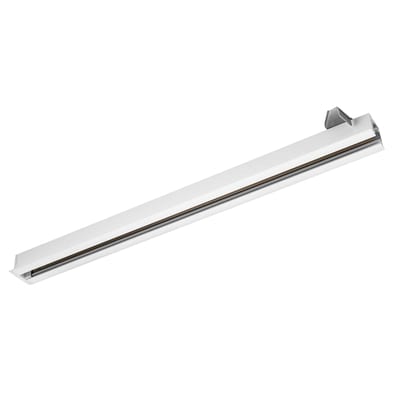

ZIP Recessed RAIL 1,8M White
300785
SG Armaturen

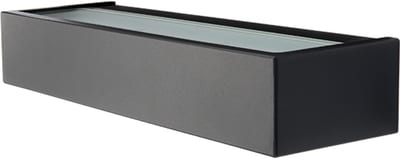

EDGE Black 10W/827 IP65
