SG Armaturen

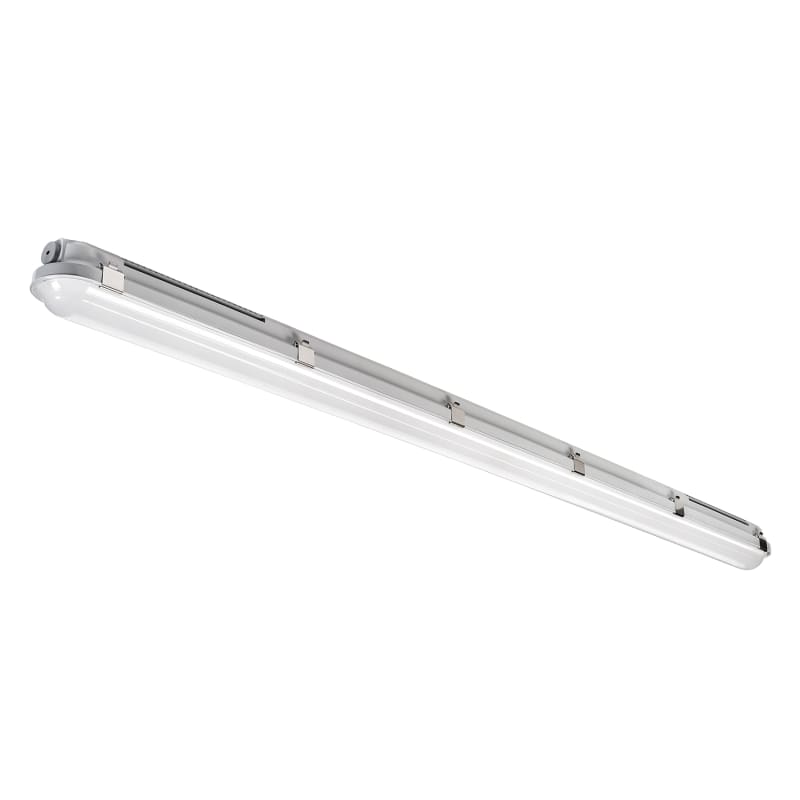

Tysnes 66 PRO 1500 55W/840 DALI
Part number120053EAN / GTIN7021981200534HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120053 TYSNES 66 PRO 1500 4000K DALI, 55W, 9430lm, Ra<80, SDCM3, L90/B10 100.000, IK10, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- 120053 EAN / GTIN: 7021981200534 Sales unit: pcs Package quantity: 8 pcs Power: 55 W Replaces: 120008 Efficacy: 171 lm/W Lumen: 9430lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L90/B10> Mounting: Surface, Indoor System wattage: 55W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 23, B16: 36, C10: 37, C16: 61 Leakage current (mA): 0.32 Type of light source: LED Light source included: Yes Luminous flux: 9430lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -40°C Light distribution: Direct Optic: Opal Beam angle: 119° UGR: UGR<28 Type: DALI-2 Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1500 Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1500 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 1.976 / 1.776 Packaging dimensions (mm): 1525 x 90 x 85 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200534
- SAP 1200747201
- Code 83886068
Product Documentation
Document preview: Tysnes 66 PRO 1500 55W/840 DALI (120053) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense Surface Wire Hanger
212234
SG Armaturen
Hurdal 600 12W/830 (113100)
SG Armaturen
Arlon SQ Black 10W/830
653605
SG Armaturen
Stripline 3,6M 9W/830 2X5M Cable
391404
SG Armaturen
Shopline 3T 3M RAIL White
312421
SG Armaturen
Junistar BIO White 500LM 5W/927
905250
SG Armaturen
Fagernes Black 9W/827
630061
SG Armaturen
Jointim 400 Centre Washer FOR Schneider
820353
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 120053?
- 120053 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 120053.
- What is the HS code for 120053?
- The customs tariff (HS) code for 120053 is 9405.11.
- Who manufactures 120053?
- 120053 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 120053?
- Yes — the 120053 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 120053?
- The minimum order quantity is 1.
- Is 120053 available?
- Yes — 120053 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
