SG Armaturen
Junistar Isosafe White 7W/D2W
Part number901231EAN / GTIN7021989012313HS code8543.70
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

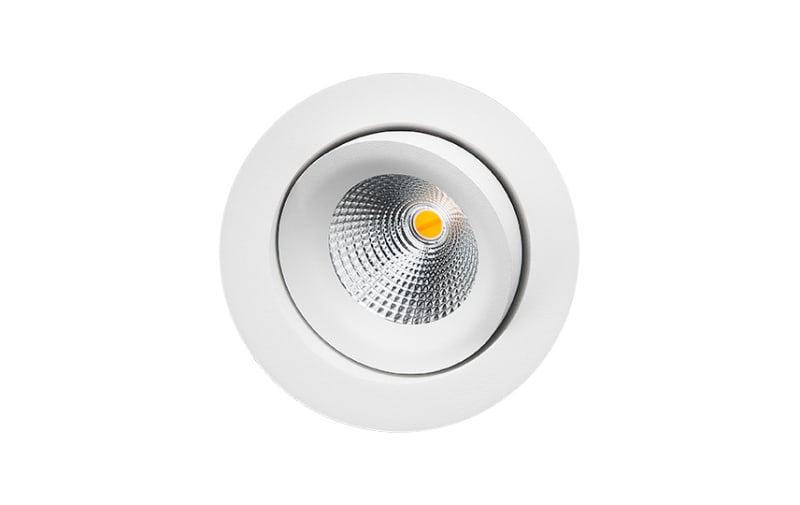

SG Armaturen 901231 Low-profile downlight which can be mounted direct in insulation. With a recessed lamp for reduced glare.
Technical Specifications
- Manufacturer part number (MPN)
- 901231
- EAN / GTIN
- 7021989012313
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Replaces
- 901271
- Efficacy
- 69 lm/W
- Lumen
- 550lm
- Wattage
- 7W
- IP Class
- IP44/IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 550lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 56
- Diameter (mm) D
- 94
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 54
- Weight (kg) gross/net
- 0.43 / 0.38
- Packaging dimensions (mm)
- 130 x 115 x 85
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989012313
- SAP 1000801048
- Code 81455621
Product Documentation
Document preview: Junistar Isosafe White 7W/D2W (901231) — Specification sheet
