SG Armaturen

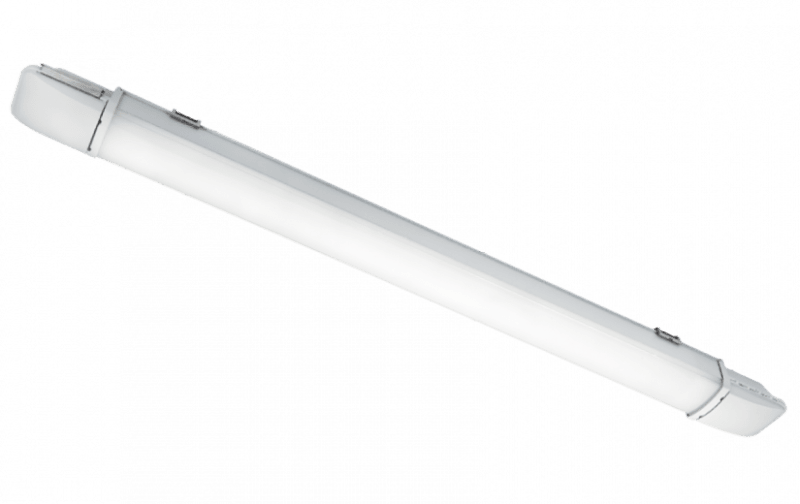

AREA66 46W/840 IP66 IK10
Part number120002EAN / GTIN7021981200022HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120002 L80/B50> 100 000 hours, 5770lm, 119 lm/W, SDCM3, IP66, IK10, L:1460mm.
Technical Specifications
- Manufacturer part number (MPN)
- 120002 EAN / GTIN: 7021981200022 Sales unit: pcs Package quantity: 6 pcs IP rating: IP66 Power: 46 W Efficacy: 129 lm/W Lumen: 5930lm Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B10> Mounting: Surface, Indoor System wattage: 46W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 8, B16: 13, C10: 13, C16: 22 Leakage current (mA): 0.52 Type of light source: LED Luminous flux: 5930lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Opal Beam angle: 100° UGR: UGR<28 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: D Breeam: Fulfils Hea 01 for flicker free lighting Sunda Hus: C+ Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1460 Width (mm) W: 92 Height (mm) H: 70 Weight (kg) gross/net: 2.904 / 2.42 Packaging dimensions (mm): 1515 x 110 x 80 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200022
- SAP 1200036797
- Code 81595379
Product Documentation
Document preview: AREA66 46W/840 IP66 IK10 (120002) — Specification sheet
