SG Armaturen
Junistar SOFT White 9W/927
Part number903211EAN / GTIN7021989032113HS code8543.70
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

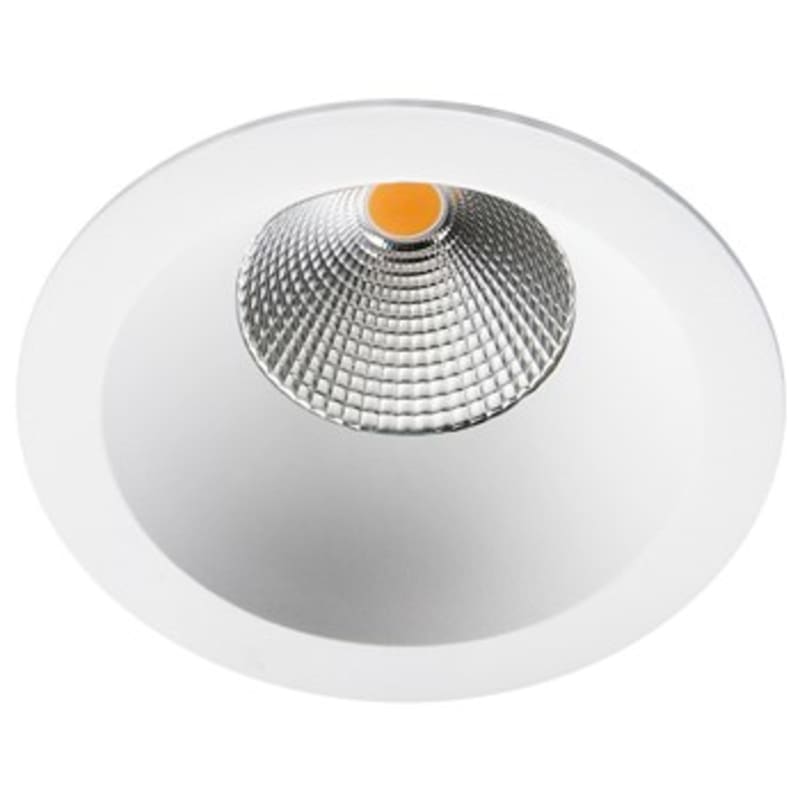

SG Armaturen 903211 Low-profile downlight. With a recessed lamp for reduced glare.
Technical Specifications
- Manufacturer part number (MPN)
- 903211
- EAN / GTIN
- 7021989032113
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 9 W
- Efficacy
- 75 lm/W
- Adjustable luminous flux
- 664lm - 1260lm
- Lumen
- 830lm
- Wattage
- 9W
- IP Class
- IP54/IP20
- Colour temperature
- 2700K
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 11W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 77, B16: 123, C10: 77, C16: 123
- Type of light source
- LED
- Luminous flux
- 830lm
- Colour rendering (Ra)
- Ra 98
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Photobiological safety
- RG 1
- Type
- Trailing edge / Linect
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 53
- Diameter (mm) D
- 94
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 51
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.46 / 0.41
- Packaging dimensions (mm)
- 130 x 115 x 85
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989032113
- SAP 1000801075
- Code 81460208
Product Documentation
Document preview: Junistar SOFT White 9W/927 (903211) — Specification sheet
More from SG Armaturen
SG Armaturen
ETNE 11W/830 730LM (143090)
SG Armaturen
ZIP 1T TUBE Micro Black 7W/D2W 40° DIM
320607
SG Armaturen
Blank Cover WITH Screw 1X White
76925
SG Armaturen
AREA66 46W/840 IP66 IK10
120002
SG Armaturen

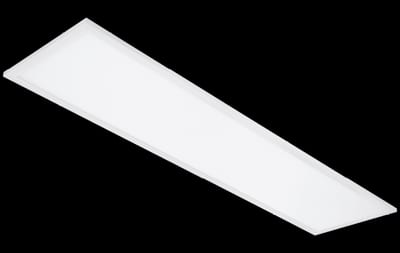

Sense ECO 300X1200 Opal prismatic 27W/830
212224
SG Armaturen

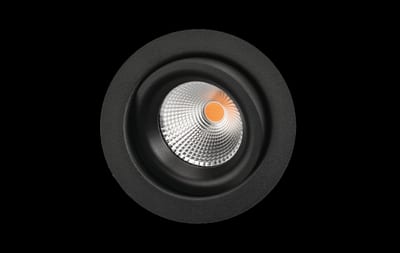

Junistar ECO Black 470LM 6W/DTW
