SG Armaturen

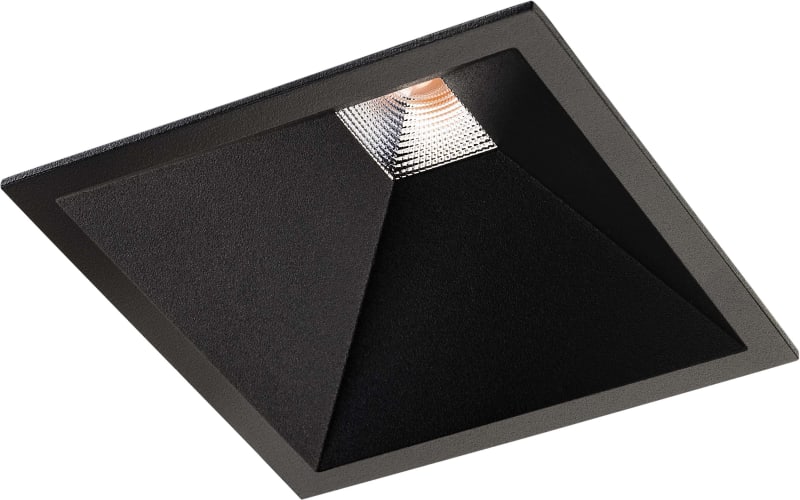

SOFT Square Black 12W/927 60° DALI
Part number903252EAN / GTIN7021989032526HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 903252 L80/B10>100 000 hours, 1060lm, 62 lm/W, SDCM1, IP43, phase-cut.
Technical Specifications
- Manufacturer part number (MPN)
- 903252
- EAN / GTIN
- 7021989032526
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 12 W
- Efficacy
- 73 lm/W
- Lumen
- 880lm
- IP Class
- IP43/IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L80/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 12W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 880lm
- MacAdams factor
- SDCM: 1
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 60°
- UGR
- UGR<19
- Photobiological safety
- RG 1
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II SELV
- IK Class
- IK10
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Connection
- 5 pol Linect / screwless terminal block
- Length (mm) L
- 95
- Width (mm) W
- 95
- Height (mm) H
- 58
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 57
- Weight (kg) gross/net
- 0.564 / 0.487
- Packaging dimensions (mm)
- 170 x 115 x 85
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989032526
- SAP 1200486505
- Code 82579167
Product Documentation
Document preview: SOFT Square Black 12W/927 60° DALI (903252) — Specification sheet
More from SG Armaturen
SG Armaturen
SOFT SLIM Black 11W/940 DALI
3246800
SG Armaturen
SG Armaturen Place Wall Luminaire Black IP54
8249044492
SG Armaturen
Frosta 480 White 24W/840 DALI
211708
SG Armaturen

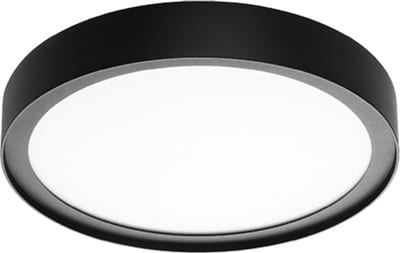

DISC 290 Black 17W/827 DALI
606049
SG Armaturen

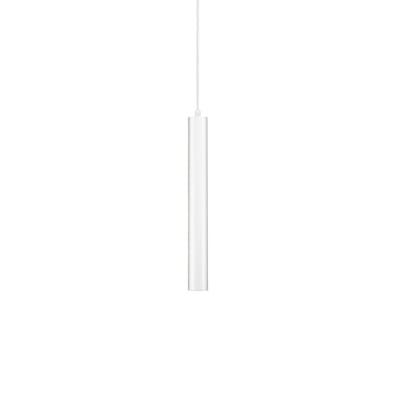

ZIP TUBE Pendant Micro 340mm (320501)
SG Armaturen

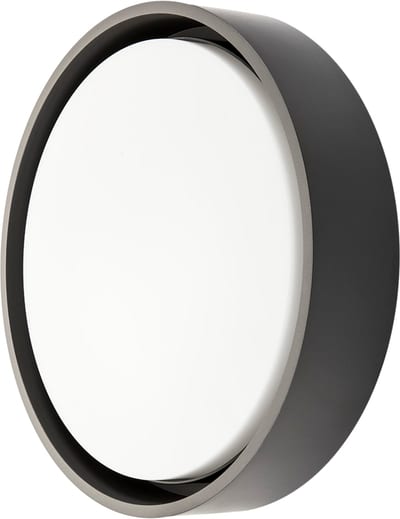

Frame Round Maxi LED Outdoor Luminaire, Graphite, 19 W/830, with Twilight Sensor
605162
SG Armaturen

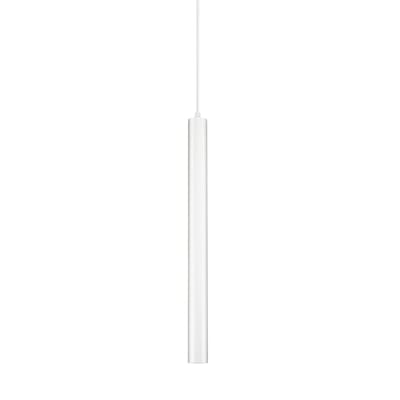

ZIP TUBE Pendant Micro 490mm (320510)
SG Armaturen

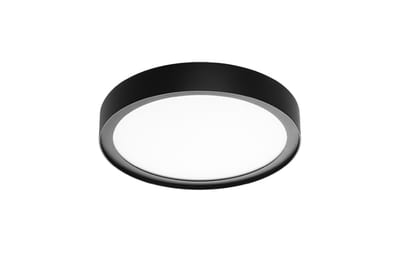

DISC 290 Black 17W/840
