SG Armaturen

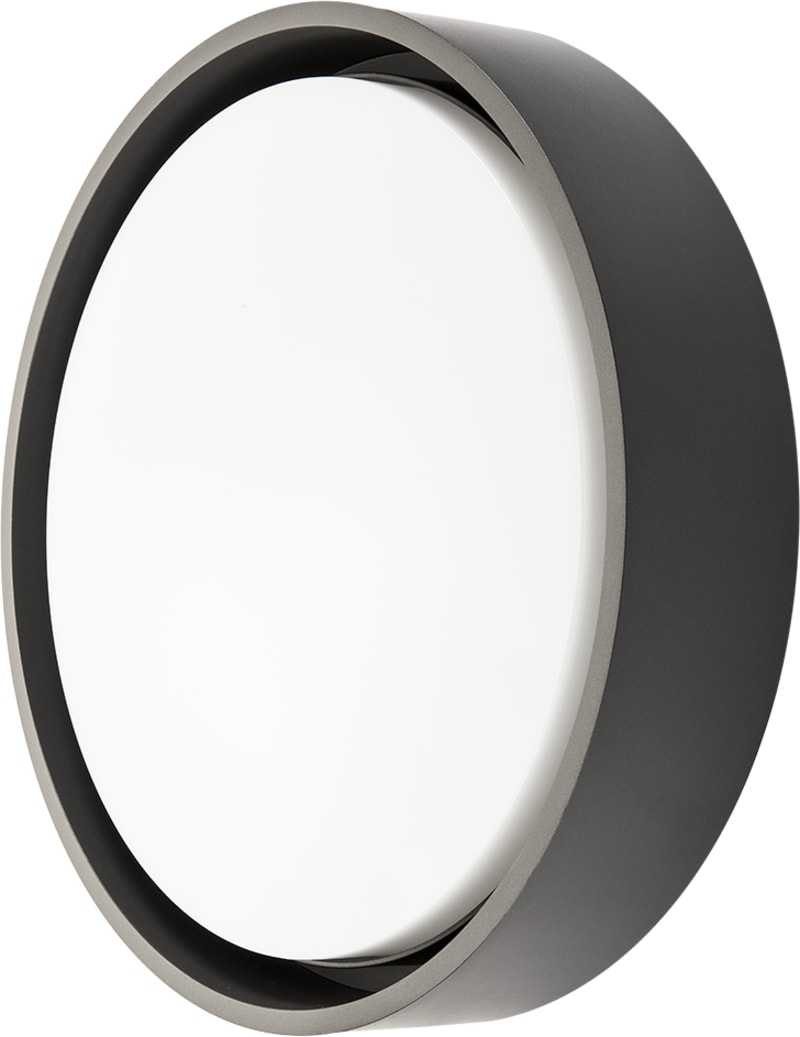

Frame Round Maxi LED Outdoor Luminaire, Graphite, 19 W/830, with Twilight Sensor
Part number605162EAN / GTIN7021986051629HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605162 Frame Round Maxi LED outdoor luminaire, graphite, 19 W, 3000 K (830), with built-in twilight (dusk) sensor.
Technical Specifications
- Manufacturer part number (MPN)
- 605162
- EAN / GTIN
- 7021986051629
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 19 W
- Efficacy
- 105 lm/W
- Lumen
- 1990lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 19W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 1990lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Twilight
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 325
- Weight (kg) gross/net
- 3.1 / 2.7
- Packaging dimensions (mm)
- 332 x 332 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986051629
- SAP 1200117329
- Code 81972267
Product Documentation
Document preview: Frame Round Maxi LED Outdoor Luminaire, Graphite, 19 W/830, with Twilight Sensor (605162) — Specification sheet
