SG Armaturen

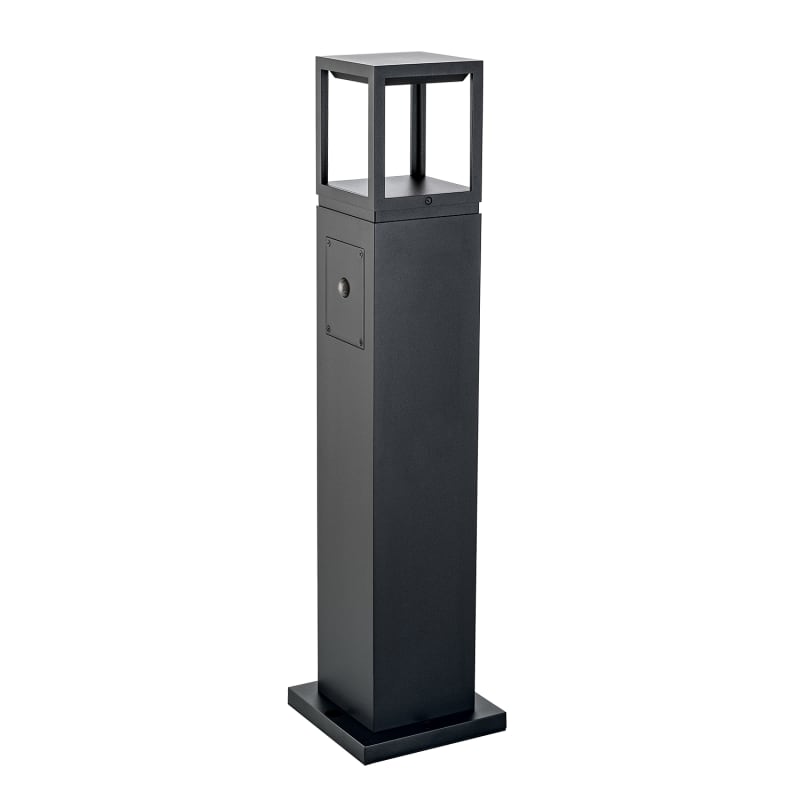

Fagernes Bollard Black 12W/830 PIR
Part number630104EAN / GTIN7021986301045HS code8536.90
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 630104 FAGERNES BOLLARD BLACK 3000K PIR SENSOR, 12W, 610lm, Ra>80, SDCM3, L70/B50 100.000, IK08, IP44.
Technical Specifications
- Manufacturer part number (MPN)
- 630104
- EAN / GTIN
- 7021986301045
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 12 W
- Efficacy
- 51 lm/W
- Lumen
- 610lm
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Onto surfaces or ground anchor, Outdoor
- System wattage
- 12W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 88, B16: 142, C10: 88, C16: 142
- Type of light source
- LED
- Luminous flux
- 610lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Indirect
- Optic
- Glass Clear
- Beam angle
- 94,2°
- Visible flicker (PstLM)
- 0.07
- Stroboscopic flicker (SVM)
- 0.34
- ULOR (<1%)
- Yes
- Type
- PIR Sensor
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- G
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Length (mm) L
- 200
- Width (mm) W
- 200
- Height (mm) H
- 800
- Weight (kg) gross/net
- 7.5 / 7.3
- Packaging dimensions (mm)
- 820 x 210 x 210
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986301045
- SAP 1200912125
- Code 84185036
Product Documentation
Document preview: Fagernes Bollard Black 12W/830 PIR (630104) — Specification sheet
